# TD52 Status LEDs

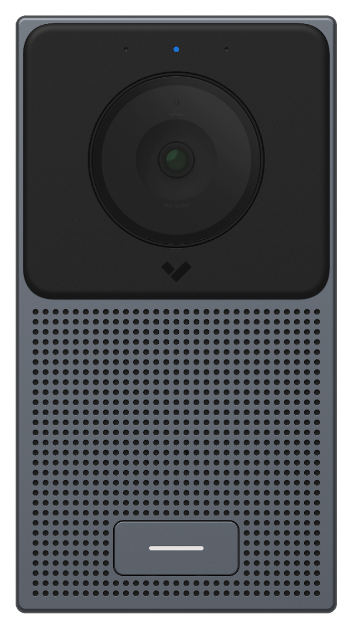

The [Verkada TD52 Video Intercom](https://www.verkada.com/intercom/td52/) uses 2 sets of LED status lights:

* 1 blue LED (located above the camera)—Indicates the current status of the unit. The camera continues to record, regardless of if its visibility in Verkada Command.
* 6 white LEDs (located above the call button)—Indicates the stage of the Intercom in the setup process.

<div align="left" data-with-frame="true"><img src="/files/YZyhNLmjWPZx0jf5Rk7P" alt="" width="266"></div>

***

## Status LEDs

The LED status light consists of the following states:

* Solid orange—Booting up
* Flashing orange—Updating firmware
* Flashing blue—Establishing network connection
* Solid blue—Fully healthy
* Flashing pink—Identify

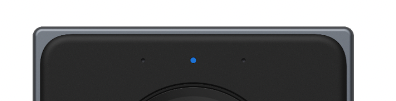

**Example**: Fully online and healthy Intercom

<div align="left" data-with-frame="true"><img src="/files/WKeoSiAhK5KEuYeQ8Biw" alt=""></div>

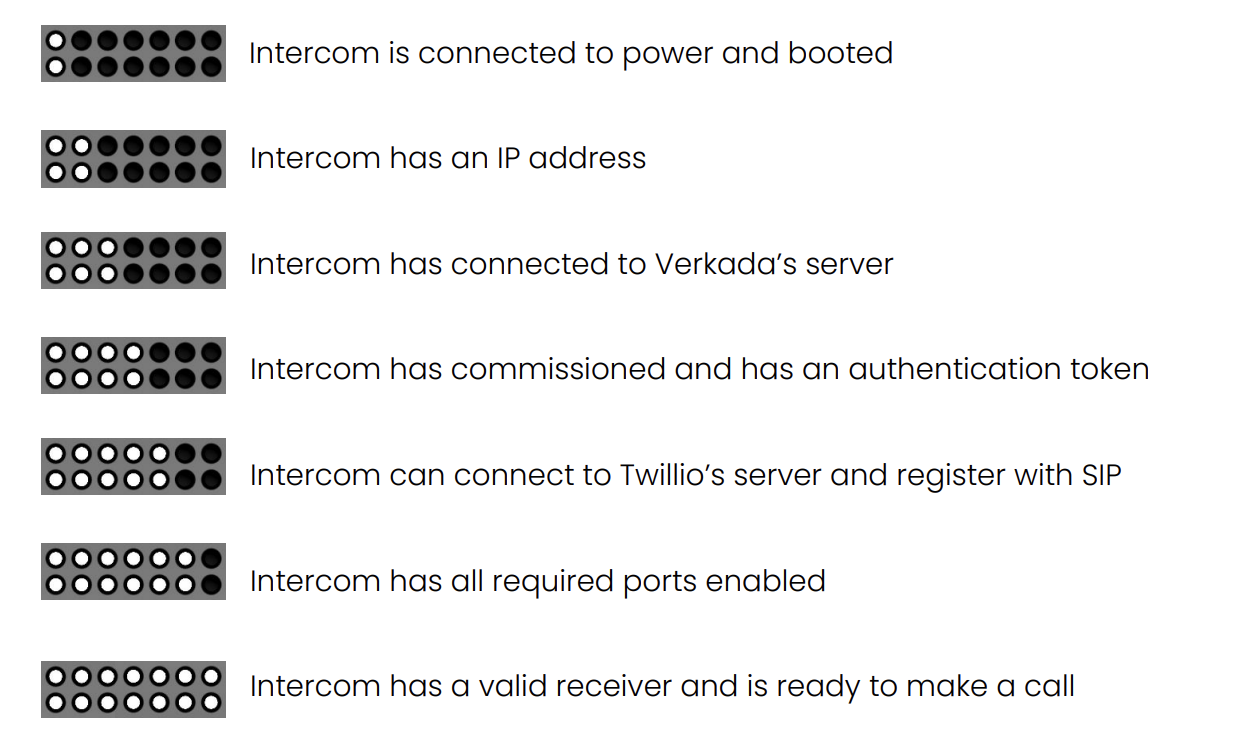

### Setup progression for status LEDs

When you first turn on the Intercom, a white LED appears. The LEDs progress as the setup progresses (up to 5 additional LEDs light up). These status LEDs are essentially a progress bar to indicate how far along the Intercom is in first coming online.

<div align="left" data-with-frame="true"><img src="/files/B8cgwdxDmk1338vPPcu9" alt=""></div>

{% hint style="warning" %}
The status bar does not persist after the Intercom is fully configured. The status bar only appears again, after it is decommissioned, and then added back to Command.
{% endhint %}


---
