# Ring Central Configuration for Verkada Intercoms

{% hint style="warning" %}
RingCentral does not support early media, so Video calling is not supported. TLS signalling and SRTP are also unsupported for the time being.
{% endhint %}

***

## RingCentral Account Setup

{% stepper %}
{% step %}

#### In the RingCentral admin portal navigate to **Phone System > Phones & Devices > User Phones.**

{% endstep %}

{% step %}

#### Select **Existing Phone.**

{% endstep %}

{% step %}

#### Click **Set Up and Provision.**

{% endstep %}

{% step %}

#### Click **Set up manually using SIP.**

{% endstep %}

{% step %}

#### For **Will you be using secure voice transport on this device?** select **No.**

{% endstep %}

{% step %}

#### Select the appropriate **Outbound Proxy** for your region.

{% endstep %}

{% step %}

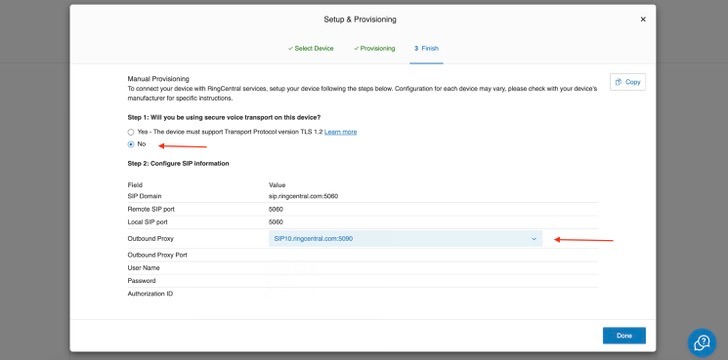

#### Copy down the following from the **Setup & Provisioning**:

a. SIP domain\
b. Outbound Proxy\
c. User Name\
d. Password\
e. Authorization ID

<div align="left" data-with-frame="true"><img src="https://3022285914-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTH6kITd3Fb5UOnnsfQ9r%2Fuploads%2Fgit-blob-6f5dc1d325d687c8ab966a7d6ba52c940793432b%2F6159879388a2b267ee0b4a3fbf158e8b67d27685.jpg?alt=media" alt="" width="364"></div>
{% endstep %}

{% step %}

#### Click **Done.**

{% endstep %}
{% endstepper %}

***

## RingCentral Extension Setup

{% stepper %}
{% step %}

#### In the RingCentral admin portal navigate to **Users > Add User.**

{% endstep %}

{% step %}

#### Create a user.

{% endstep %}

{% step %}

#### Navigate to **Phone system > Phones & Devices > User Phones.**

{% endstep %}

{% step %}

#### **Click** into your intercom > **Set Up and Assign.**

a. Select location\
b. Select the user you created in step 2\
c. Name your phone\
d. Select an available number\
e. Add emergency response location\
f. Configure SMS (optional, adds no functionality on Verkada end)
{% endstep %}
{% endstepper %}

***

## Command Setup

{% stepper %}
{% step %}

#### Navigate to your Intercom’s settings page.

{% endstep %}

{% step %}

#### Navigate to **Call > Add Account.**

{% endstep %}

{% step %}

#### Fill in SIP Account Name, this is not relevant for registration and is only used for Verkada event generation.

{% endstep %}

{% step %}

#### Copy the Ring Central elements listed above to the Verkada SIP configuration fields using the following mapping:

{% endstep %}
{% endstepper %}

|                        |                        |
| ---------------------- | ---------------------- |
| **Ring Central Field** | **Command Field**      |
| SIP Domain             | Domain / Server \*     |
| Outbound Proxy         | Proxy                  |
| User Name              | User ID / Extension \* |
| Password               | Password / Secret \*   |
| Authorization ID       | Authorization ID       |

5\. For **Transport Mode**, select TCP.

6\. Click **Save.**

7\. Navigate to your Intercom’s receivers page or to the Call Flows tab.

8\. Locate your Call List of choice and select the **+** > **SIP Phone.**

9\. Type in the Ring Central intercom’s extension and click **Check** to save.

10\. Upon success, you will see a green checkmark in the call list.

***

## FAQ

<details>

<summary>Is video supported?</summary>

Not currently.

</details>

<details>

<summary>What RingCentral user licenses do I need to assign to my intercom?</summary>

We recommend registering intercoms with the RingEX™ User license.

</details>

<details>

<summary>Why is my intercom not registering?</summary>

Make sure to click **Done** in the set-up and provisioning menu in Ring Central **before** trying to save the SIP configs for your intercom in Verkada Command. After pressing **Done** click **Resync** if needed.

</details>

<details>

<summary>Can I use the Ring Central app to receive calls from my intercom?</summary>

Yes. As long as the Intercom is registered, you can receive calls from the intercom in the RingCentral app.

</details>

***
