# 셀룰러 게이트웨이 상태 LED

Verkada GC31/GC31-E 셀룰러 게이트웨이 상태 LED에 대해 자세히 알아보세요

Verkada의 [GC31/GC31-E 셀룰러 게이트웨이](https://www.verkada.com/cellular-gateway) 는 모델별 LED 표시 상태를 갖추고 있습니다:

|                               |                                                                                      |
| ----------------------------- | ------------------------------------------------------------------------------------ |
| **모델**                        | **작동 유형**                                                                            |
| [GC31](#h_40806a4487) (실내용)   | <p><a href="#h_d160696649">일반 작동</a></p><p><a href="#h_1f575e66f4">SIM 카드 작동</a></p> |
| [GC31-E](#h_1394c2a584) (실외용) | <p><a href="#h_b29c15c8c7">일반 작동</a></p><p><a href="#h_fc60063a6b">SIM 카드 작동</a></p> |

이 문서를 통해 다양한 LED 특성을 알아보고 그 의미를 이해하는 데 도움을 받으세요.

***

## GC31 상태 LED

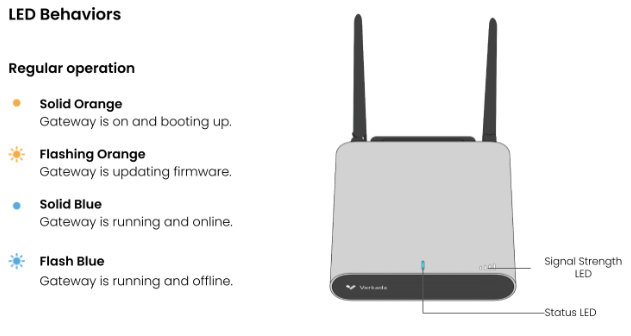

### 일반 작동

LED 상태 표시등은 다음 상태로 구성됩니다:

* **주황색 점등**—GC31이 켜져 있고 부팅 중입니다
* **주황색 점멸**—GC31이 펌웨어를 업데이트하는 중입니다
* **파란색 점등**—GC31이 작동 중이며 온라인입니다
* **파란색 점멸**—GC31이 작동 중이며 오프라인입니다

<div align="left" data-with-frame="true"><img src="https://2645961166-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-69e1d4c059601c36100ed37b6b99769d3ffc6ef7%2Fd5b68cd3f90b83812b020f3d35511878586cf2b5.png?alt=media" alt=""></div>

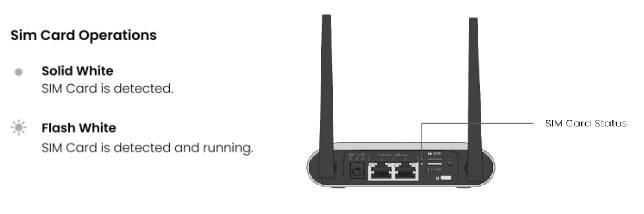

### SIM 카드 작동

LED 상태 표시등은 다음 상태로 구성됩니다:

* **불이 꺼짐**—SIM 카드가 감지되지 않았습니다
* **흰색 점등**—SIM 카드가 감지되었습니다
* **흰색 점멸**—SIM 카드가 감지되었고 작동 중입니다

<div align="left" data-with-frame="true"><img src="https://2645961166-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-1b056f5a5321a4a0e28562672b174ef042d964c0%2Fabc94f0a57bb547b918af3058f6421e81aeda45b.png?alt=media" alt=""></div>

***

## GC31-E 상태 LED

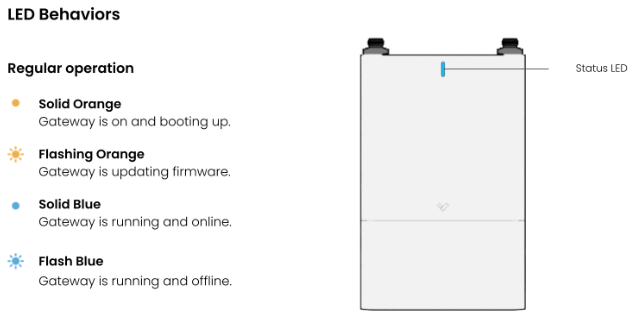

### 일반 작동

LED 상태 표시등은 다음 상태로 구성됩니다:

* **주황색 점등**—GC31이 켜져 있고 부팅 중입니다
* **주황색 점멸**—GC31이 펌웨어를 업데이트하는 중입니다
* **파란색 점등**—GC31이 작동 중이며 온라인입니다
* **파란색 점멸**—GC31이 작동 중이며 오프라인입니다

<div align="left" data-with-frame="true"><img src="https://2645961166-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-8105ba807a7d5028c83b8d432da35fc2614cbcfa%2F88089a6302c3188f8091be13f81e78090ab1166d.png?alt=media" alt=""></div>

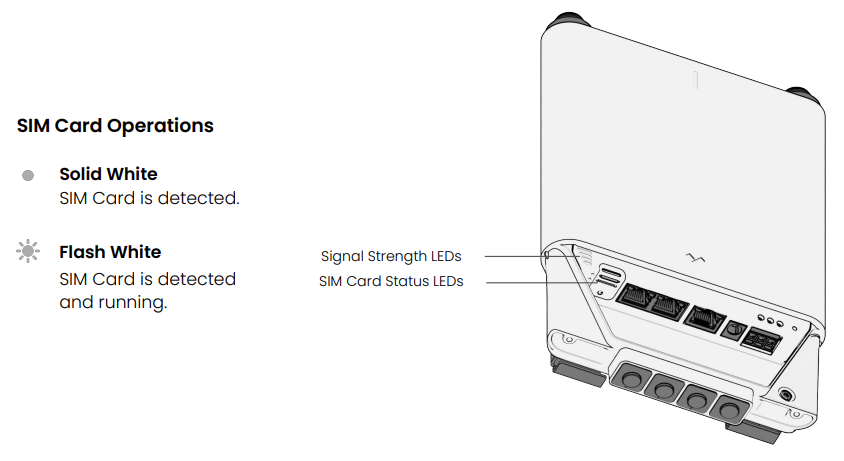

### SIM 카드 작동

LED 상태 표시등은 다음 상태로 구성됩니다:

* **불이 꺼짐**—SIM 카드가 감지되지 않았습니다
* **흰색 점등**—SIM 카드가 감지되었습니다
* **흰색 점멸**—SIM 카드가 감지되었고 작동 중입니다

<div align="left" data-with-frame="true"><img src="https://2645961166-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-01a8ed633c8b8a757f2c6e103d7fdb68e4356a67%2F7ce60ce007af44449885546fce8f0c5a23dedcc0.png?alt=media" alt=""></div>


---
