# Outdoor GatewaysでPoEスイッチを使用する

配下のデバイス向けに電力とポート数を増やすため、outdoor gatewaysでPoEスイッチを使用する

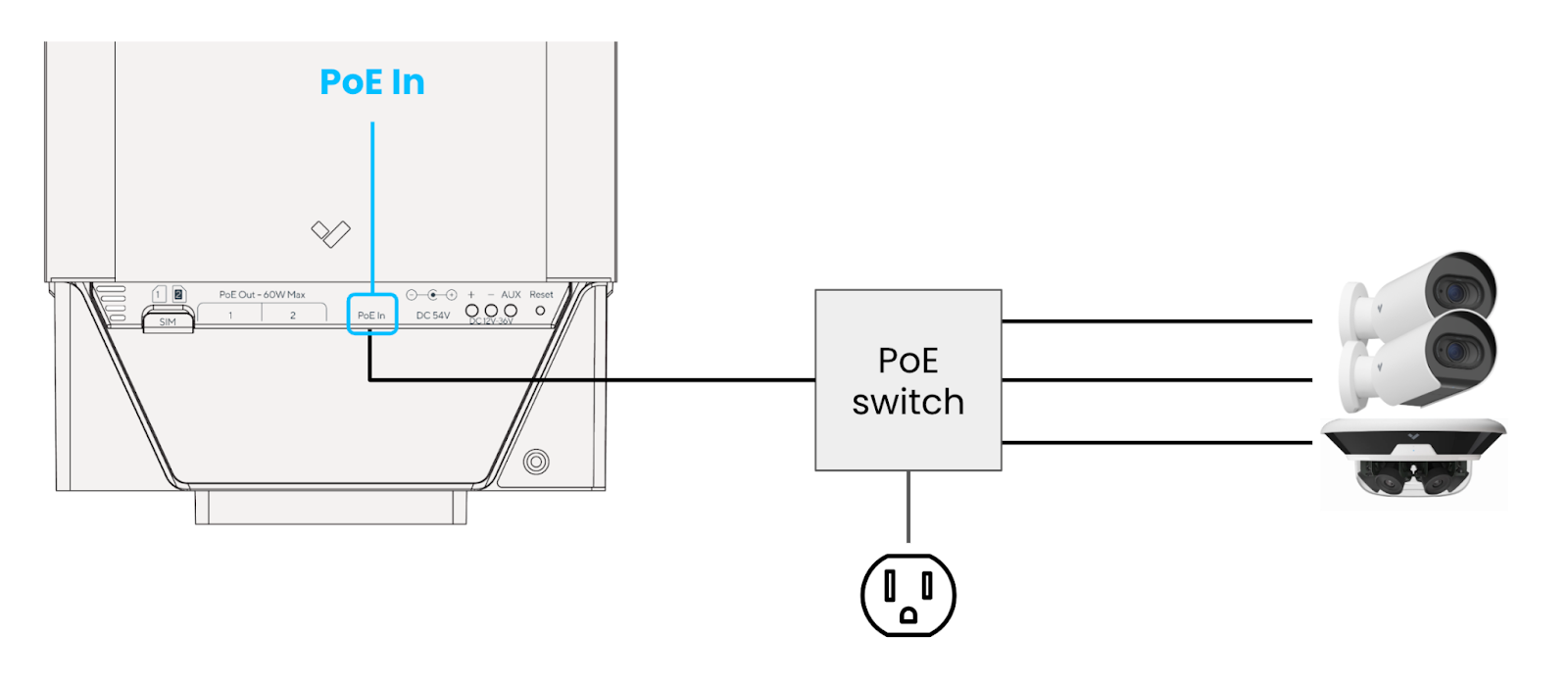

屋外ゲートウェイでPoEスイッチを使用すると、Verkadaカメラなどの下流デバイスに利用できる電力やポート数を増やすことができます。次のトポロジーを推奨します:

<div align="left" data-with-frame="true"><img src="https://1705908483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-45e0d56f902440ee51e4526dde77868dfaa43ac3%2F2be38605698bb41881c927171fe751276d354ea0.png?alt=media" alt=""></div>

このトポロジーでは、顧客提供のPoEスイッチがゲートウェイのPoE Inポートに電力を供給し、同じポートからデータを受信します。この構成を有効にするには、PoE **In** ポートの設定をLANに変更します。

***

### PoE Inポートの設定をLANに変更する

{% hint style="warning" %}
この設定は屋外ゲートウェイでのみ使用できます。
{% endhint %}

{% stepper %}
{% step %}
**Verkada Command で、「All Products」>「Gateways」に移動します。**
{% endstep %}

{% step %}
**設定するゲートウェイを選択します。**
{% endstep %}

{% step %}
**右上の「設定」をクリックします。**
{% endstep %}

{% step %}
**［Network > Connection］で、［Local Area Network (LAN)］を選択します。**

<div align="left" data-with-frame="true"><img src="https://1705908483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-530d02c5c3701bd87237fbc9c88a1c2d96e72231%2Faa4919508c82e5db6888019937dc7a782db7c34f.png?alt=media" alt="" width="435"></div>

{% hint style="warning" %}
屋外ゲートウェイのPoE INポートは、デフォルトでWANに設定されています。
{% endhint %}
{% endstep %}

{% step %}
**保存するには、［適用］をクリックし、次に［確認］をクリックします。**
{% endstep %}
{% endstepper %}


---
