# Usar un switch PoE con pasarelas exteriores

Use un switch PoE con pasarelas exteriores para aumentar la energía y la cantidad de puertos para los dispositivos descendentes

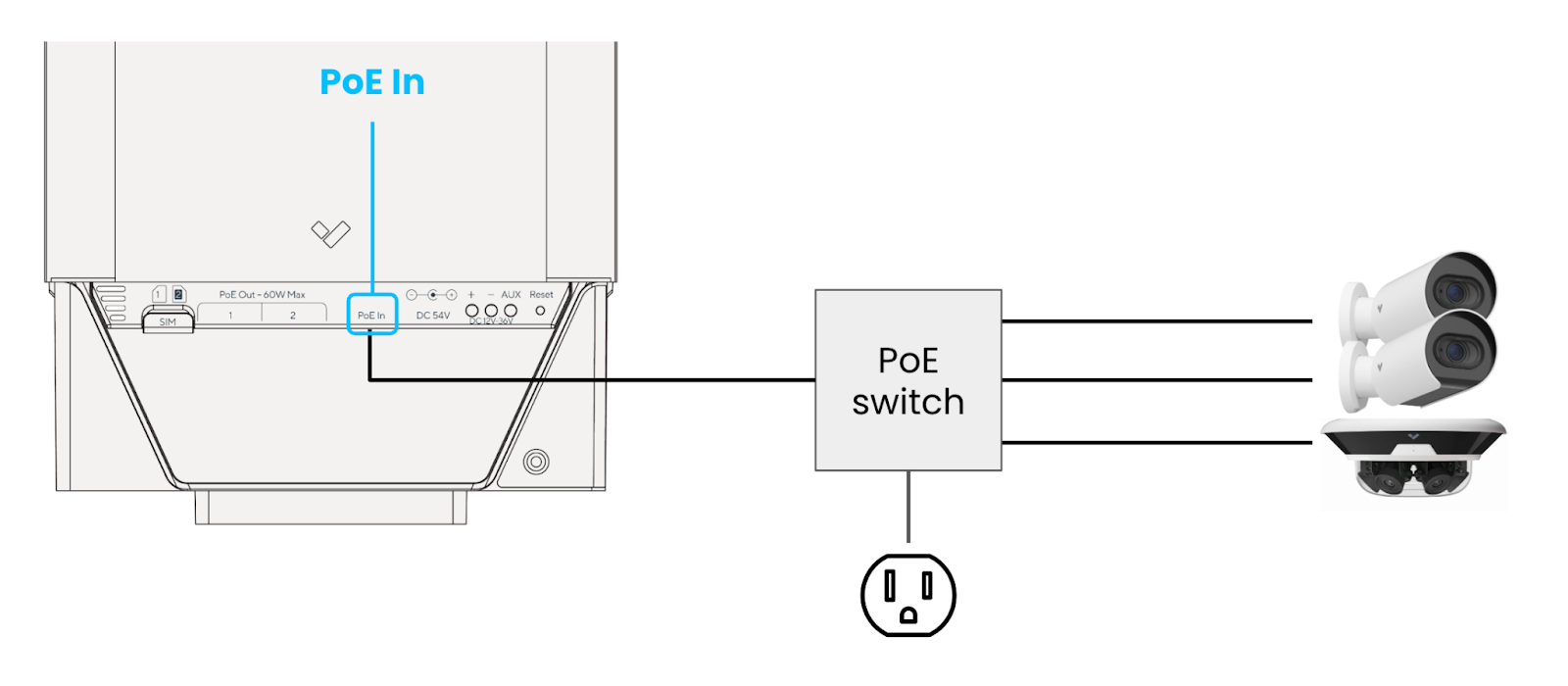

Puede usar un conmutador PoE con la pasarela para exteriores para aumentar la potencia y/o el número de puertos disponibles para dispositivos aguas abajo, como cámaras Verkada. Recomendamos seguir esta topología:

<div align="left" data-with-frame="true"><img src="https://1079273593-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-45e0d56f902440ee51e4526dde77868dfaa43ac3%2F2be38605698bb41881c927171fe751276d354ea0.png?alt=media" alt=""></div>

En esta topología, el conmutador PoE proporcionado por el cliente suministra energía al puerto PoE In de la pasarela y recibe datos desde el mismo puerto. Para habilitar esta configuración, debe cambiar el PoE **En** la configuración del puerto a LAN.

***

### Cambiar la configuración del puerto PoE In a LAN

{% hint style="warning" %}
Esta configuración solo está disponible en las pasarelas para exteriores.
{% endhint %}

{% stepper %}
{% step %}
**En Verkada Command, vaya a Todos los productos > Gateways.**
{% endstep %}

{% step %}
**Seleccione el gateway que desea configurar.**
{% endstep %}

{% step %}
**En la parte superior derecha, haga clic en Configuración.**
{% endstep %}

{% step %}
**En Red > Conexión, seleccione Red de área local (LAN).**

<div align="left" data-with-frame="true"><img src="https://1079273593-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-530d02c5c3701bd87237fbc9c88a1c2d96e72231%2Faa4919508c82e5db6888019937dc7a782db7c34f.png?alt=media" alt="" width="435"></div>

{% hint style="warning" %}
El puerto PoE IN de las pasarelas para exteriores está configurado de forma predeterminada en WAN.
{% endhint %}
{% endstep %}

{% step %}
**Haz clic en Aplicar y luego en Confirmar para guardar.**
{% endstep %}
{% endstepper %}


---
