# Status-LEDs des Wi-Fi Gateways

Verstehen Sie den LED-Status eines Verkada Outdoor Wi-Fi Gateways

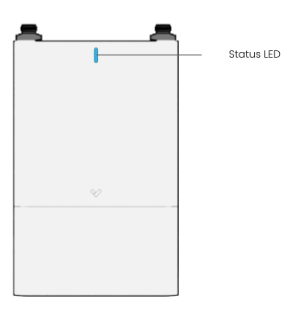

Das Verkada-WLAN-Gateway ist mit einer Status-LED ausgestattet, die Ihnen auf einen Blick zeigt, was passiert. Dieser Artikel erklärt die verschiedenen LED-Zustände, damit Sie verstehen, was sie bedeuten.

***

## Status-LEDs des GW31-E

Die LED-Statusleuchte besteht aus den folgenden Zuständen:

* **Durchgehend orange**—GW31-E ist eingeschaltet und startet
* **Blinkt orange**—GW31-E aktualisiert die Firmware
* **Durchgehend blau**—GW31-E läuft und ist online
* **Blinkt blau**—GW31-E läuft und ist offline
* **Blinkt grün**—GW31-E Bluetooth ist aktiviert und sendet

<div align="left" data-with-frame="true"><img src="https://1971509114-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-9a97b41c3f8beacdd76e276aca04e2809ba1f080%2F7d0eddbaf7db49898c17de4ebe078a31bdd9e48a.png?alt=media" alt=""></div>


---
