Power Options for Outdoor Gateways

Learn about the various ways you can power outdoor gateways

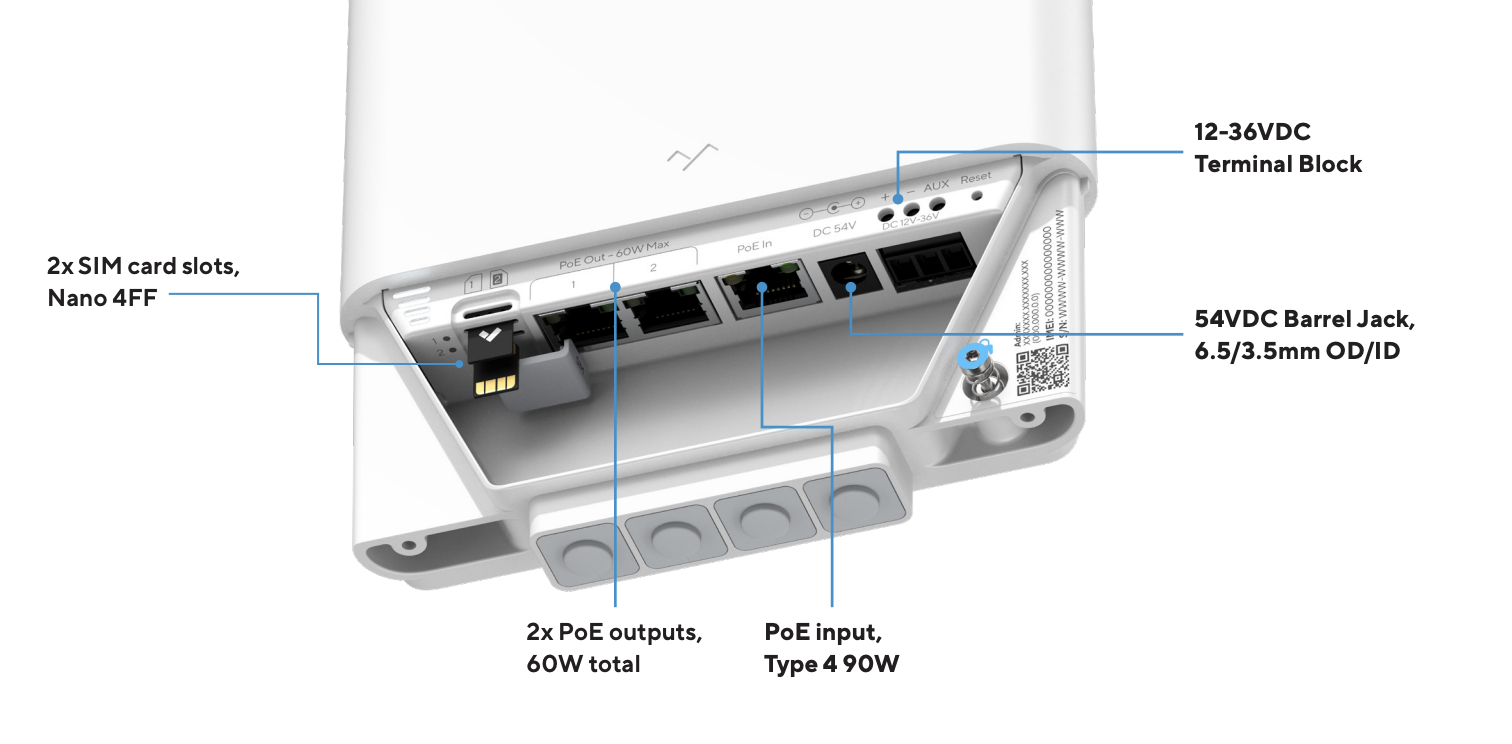

The GC31-E and GW31-E Outdoor Gateways have three power input options, making it compatible with a variety of power sources such as AC outlets, solar panels/batteries, or streetlights. This article covers some of the common installation scenarios.

Always hire a licensed electrician for installations that involve electrical wiring.

---

Outdoor AC outlet or junction box

You can use the Verkada 90W Outdoor PoE++ Injector, which takes in 100-240VAC and sends power through the gateway’s PoE input. The injector is weatherized (IP66) and can be plugged into an AC outlet or connected directly to bare wires from a conduit or junction box. For a cleaner installation, the gateway can be mounted on the surface of the injector.

Indoor AC outlet

For situations where the gateway can access power from inside a building, you can use the Verkada 90W Indoor PoE++ Injector or Verkada AC/DC Power Adapter. These accessories plug into a 100-240V AC outlet and send power to the gateway through the PoE and barrel jack inputs.

Streetlight pole

On the top of most street lights or parking lot lights is a round photocontrol receptacle, which can be used to power auxiliary devices such as the gateway. Verkada recommends the FP 7-Pin AC/DC Power Tap, which is compatible with 105-240VAC light poles and has an optional photocontrol passthrough. The power tap outputs DC power via PoE, allowing it to be connected directly to the gateway’s PoE input.

Always hire a licensed electrician for light pole installations, and obtain permission from the entity that owns the pole. A meter may also need to be installed in some cases.

For 277V and 480V street lights, hire a licensed electrician to step down the voltage to 120V and use the Verkada 90W Outdoor PoE++ Injector to power the gateway. For streetlights that only have power at night, we recommend adding a backup battery that can discharge during the day.

Solar/battery power

The gateway has a DC terminal block input that allows for direct wiring to a solar panel and/or battery. A 12V or 24V battery is recommended, as the gateway accepts 12-36VDC.

For vehicle installations, we recommend wiring to a 12V accessory or using a power timer off-relay to avoid draining the battery when the ignition is off.

• The expected power consumption for the gateway is 9W under normal circumstances and 19W when the heaters are on.

• The gateway requires 90W in order to provide its full 60W power output.
