# Wi-Fi Gateway Status LEDs

Understand the LED status for a Verkada Outdoor Wi-Fi Gateway

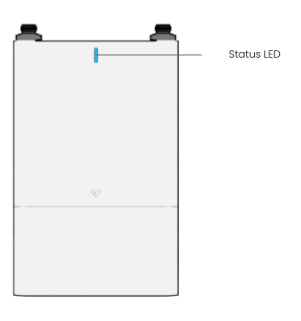

The Verkada Wi-Fi gateway is equipped with a status LED, which lets you know what’s happening at a glance. This article explains the different LED characteristics to help you understand what they mean.

***

## GW31-E status LEDs

The LED status light consists of the following states:

* **Solid orange**—GW31-E is on and booting up
* **Flashing orange**—GW31-E is updating firmware
* **Solid blue**—GW31-E is running and online
* **Flashing blue**—GW31-E is running and offline
* **Flashing green**—GW31-E Bluetooth is on and broadcasting

<div align="left" data-with-frame="true"><img src="https://1814166542-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiAGnzScvko5PkG7YBy3i%2Fuploads%2Fgit-blob-9a97b41c3f8beacdd76e276aca04e2809ba1f080%2F7d0eddbaf7db49898c17de4ebe078a31bdd9e48a.png?alt=media" alt=""></div>


---
