# Set up the Axon Evidence integration in Command

Axon Evidence is a digital evidence management platform designed to securely store, manage, and share critical video and multimedia evidence collected from body cameras, drones, and other devices. It streamlines workflows for law enforcement and public safety agencies, ensuring efficient collaboration and compliance with legal standards.

Through this integration, Verkada customers can seamlessly export video archives from Command to their Axon Evidence agencies to simplify digital evidence gathering and management. Using Command’s powerful investigation tools, such as AI-powered search, users can quickly find the relevant incident and add it as evidence to their Axon Evidence agency.

***

## Create Axon Evidence API client credentials

{% stepper %}
{% step %}

#### Log in to your Axon Evidence account.

{% endstep %}

{% step %}

#### Navigate to **Admin > Security Settings > API Settings** ([MyAxon Documentation](https://my.axon.com/s/article/API-Settings))

{% endstep %}

{% step %}

#### Select **CREATE CLIENT.**

a. Name the client **Verkada Command.**\
b. Select **Evidence > any.create.**\
c. Select **Users > read.**\
d. Select **Cases > any.list**\
e. Select **Partner > category.view**\
f. Click **SAVE.**
{% endstep %}

{% step %}

#### Store this value to use later in Verkada Command.

{% endstep %}
{% endstepper %}

***

## Configure the Axon Evidence integration in Command

{% stepper %}
{% step %}

#### In Verkada Command, go to **All Products > Admin** **.**

{% endstep %}

{% step %}

#### In the left navigation, select **Org Settings** **> Verkada API**.

{% endstep %}

{% step %}

#### Under **Integrat**i**ons,** click **Add Integration.**

{% endstep %}

{% step %}

#### Select **Axon**.

<div align="left" data-with-frame="true"><img src="https://705858581-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FNRq5qDDjsYNxwNzF1bcB%2Fuploads%2Fgit-blob-7f8a18185776e9ae84d040e414a9dcc5d784a62f%2F389517c5be24703bd2b49796ba11f8f95810ce16.png?alt=media" alt="" width="263"></div>
{% endstep %}

{% step %}

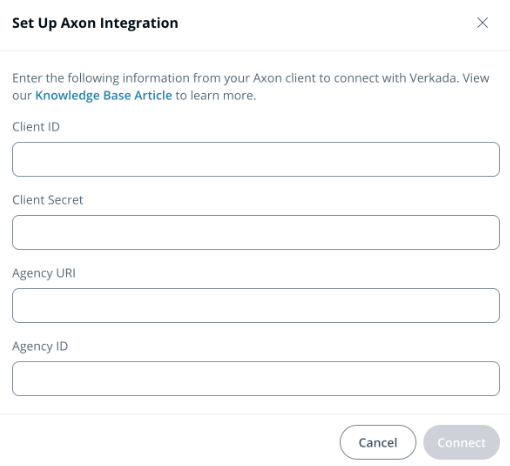

#### Enter your **Evidence Client ID, Client Secret, Agency URI,** and **Agency ID,** and click **Connect.**

**Note:** Follow the [steps above](#h_fc14da2a93) to retrieve these credentials directly from the Axon Evidence Admin workflow.

<div align="left" data-with-frame="true"><img src="https://705858581-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FNRq5qDDjsYNxwNzF1bcB%2Fuploads%2Fgit-blob-43336a5df6bbdef522ec392443e7ec7410a7c443%2Fcc7eb9ea698995ec9561e8782afe2de3b5f55c7e.png?alt=media" alt="" width="255"></div>
{% endstep %}

{% step %}

#### Command will perform an authentication check to verify that the entered credentials are valid.

<div align="left" data-with-frame="true"><img src="https://705858581-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FNRq5qDDjsYNxwNzF1bcB%2Fuploads%2Fgit-blob-6178fc01b2b20d277cbf0f2527724475468a9073%2F1ac5c20a390b09aa194d153b2ea2227892252735.png?alt=media" alt="" width="234"></div>
{% endstep %}
{% endstepper %}

***

## Export archives to Axon Evidence

{% stepper %}
{% step %}

#### In Verkada Command, go to **All Products > Cameras** **.**

{% endstep %}

{% step %}

#### In the left navigation, select **Archives** **.**

{% endstep %}

{% step %}

#### Hover over an archive and click .

a. Select **Upload to Axon.**\
b. Enter the **Axon user email** used in your Evidence account.\
c. *(Optional)* Users can also associate the exported Archive to existing Evidence Case IDs and Categories through the corresponding dropdown menus. **Note**\*:\* You may need to refine your search if you do not see the Case ID when searching in Command.\
d. Click **Upload.**
{% endstep %}

{% step %}

#### You will receive an email notifying you once the footage is available in Axon Evidence after a successful export. You will also be notified if the export is unsuccessful.

{% endstep %}

{% step %}

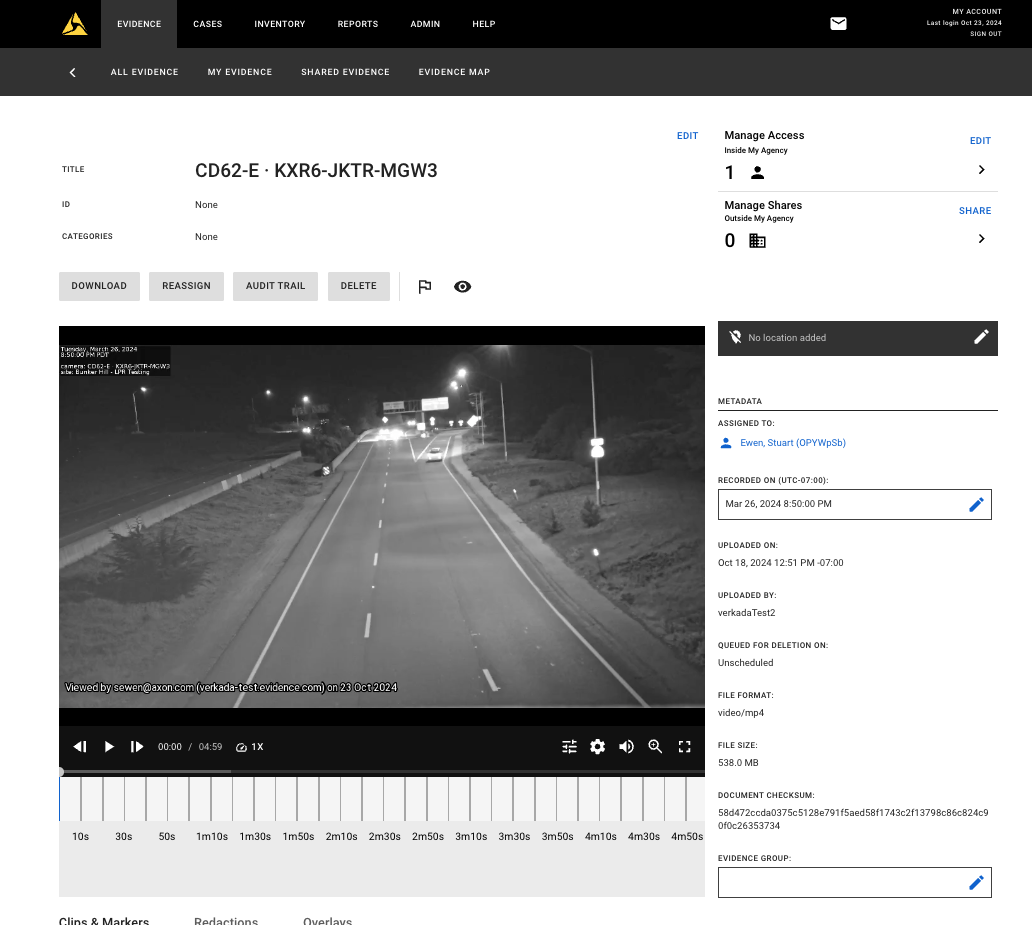

#### You will also be able to directly access the video from your Axon Evidence account by following the link provided in the confirmation email. The video will also be searchable from within Axon Evidence by using the associated Case ID or Category.

<div align="left" data-with-frame="true"><img src="https://705858581-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FNRq5qDDjsYNxwNzF1bcB%2Fuploads%2Fgit-blob-fcac0273238e0149fe45b69ec63190a27e9fa662%2F609e146207007c4202eb88b4bcfd6bd9753333c1.png?alt=media" alt="" width="516"></div>
{% endstep %}
{% endstepper %}

{% hint style="warning" %}
You can find the Verkada archive in your agency’s Evidence account. All Verkada archives exported to Evidence will have a **Verkada** tag and be listed under the user who initiated the export from Command.
{% endhint %}

***

**Need more help?** Contact [Verkada Support](https://www.verkada.com/contact/).
