# Battery Backup for the BP41 Alarm Panel

In situations where you use your [Verkada BP41 alarm panel](https://docs.verkada.com/docs/alarm-panel-overview.pdf) in critical safety applications, we recommend to have backup power in case of a power outage.

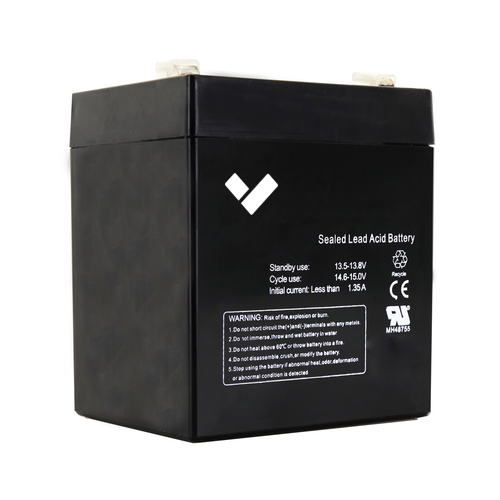

Verkada offers the **ACC-BAT-4AH** for use with the BP41 alarm panel. The Verkada BP41 can be powered by a 12V 4.5Ah sealed lead-acid (SLA) battery as a backup power source.

![](https://2326462210-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9tIFgMOGbY4p9wWaKQhl%2Fuploads%2Fgit-blob-13c5f5706037ec1cf30afef5d637fccae2ecc38d%2F2741b4ebce372f74664e67e37889ca268d54f7fc.png?alt=media)

## Install a backup battery on your BP41

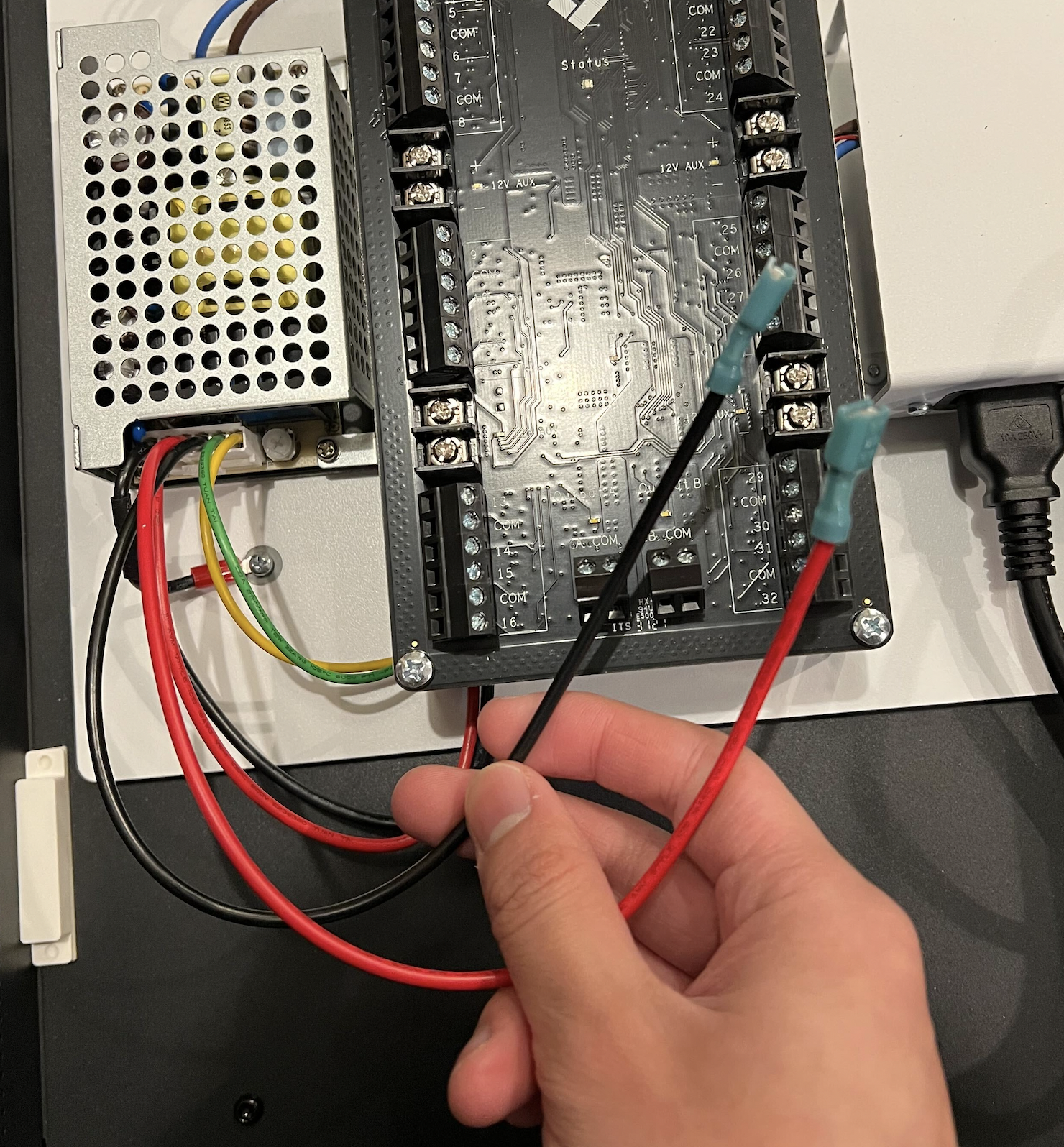

Connect the **red** lead with the positive (**+**) connector on the battery and the **black** one to the negative (**-**). The battery pack can then sit inside the Verkada BP41 case.\
​

![](https://2326462210-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9tIFgMOGbY4p9wWaKQhl%2Fuploads%2Fgit-blob-e79081b399b7081bc72d7e1b17cf34394b8ed3e4%2Fcff5f25ed4061b0be8d1ec68eabc4915db6ecfc7.png?alt=media)

## Wire 2 backup batteries to the BP41

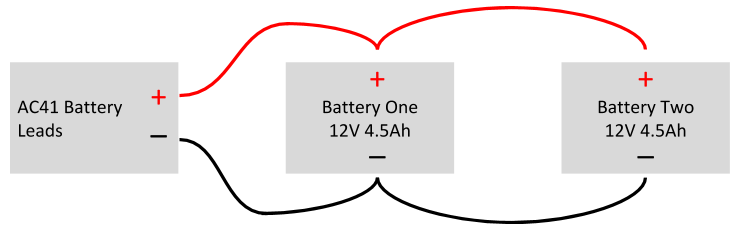

To get double the amp hours (capacity), while maintaining the same voltage, you can connect 2 batteries in parallel (**NOT in series**) to provide twice as much battery capacity, as shown below.

![](https://2326462210-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9tIFgMOGbY4p9wWaKQhl%2Fuploads%2Fgit-blob-43b0fd9d39d43c1a889ecf61d9c4e2b181ebf824%2F0b7238f7dce70ab40f8d63daf9470c7ab1066c27.png?alt=media)
