# 空気質センサーのステータスLED

各 Verkada [空気質センサー](https://www.verkada.com/air-quality/sensors#overview) は屋外用 LED ライトを備えています。このライトは動作状態を示します。Verkada は [SV11](https://www.verkada.com/sensors/sv11/) シリーズおよび SV20 シリーズ（ [SV21](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf), [SV23](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf), [SV25](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf)).

***

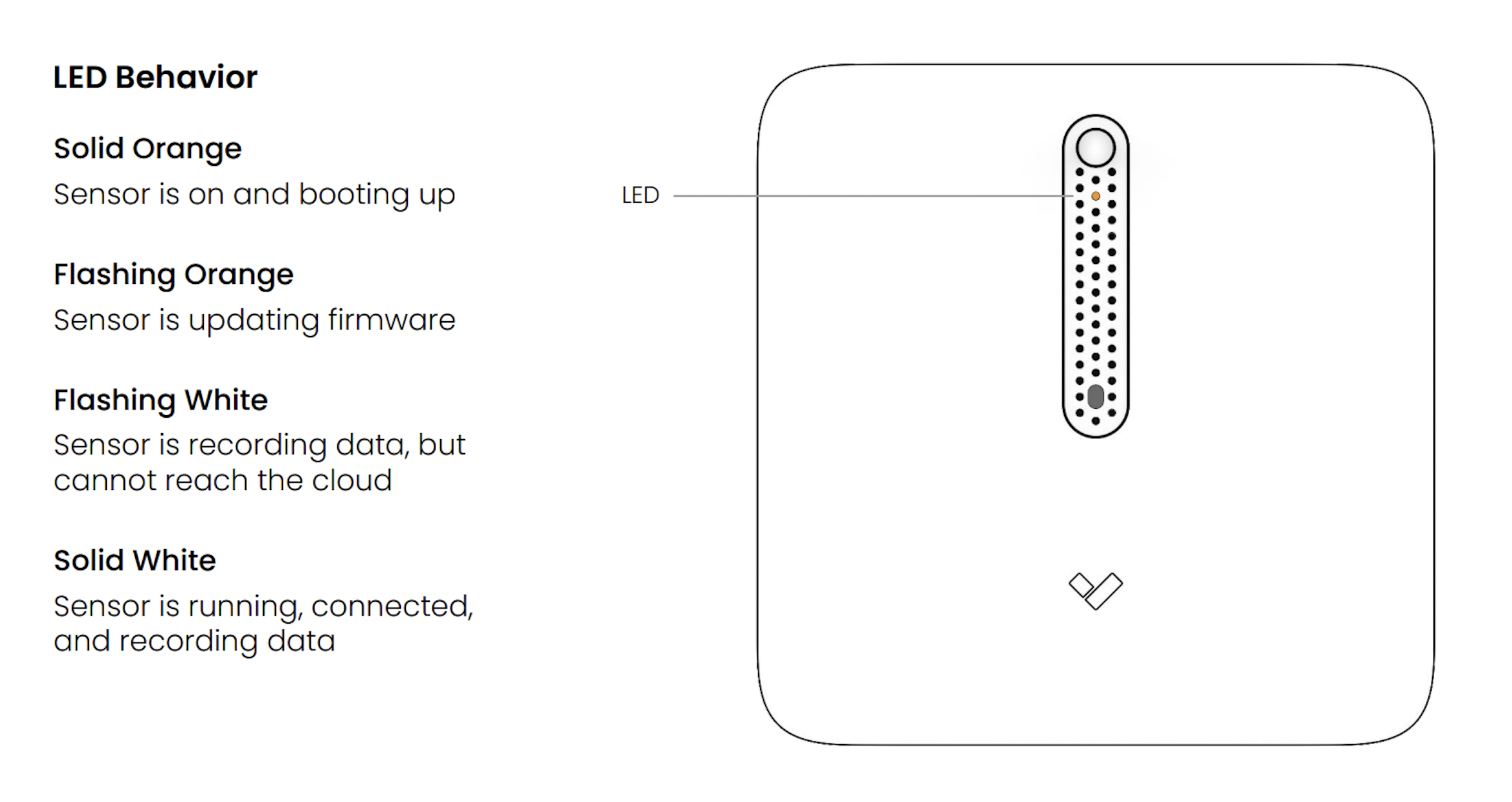

## SV20 シリーズ

より新しい SV20 シリーズ（[SV21](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf), [SV23](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf), [SV25](https://docs.verkada.com/docs/air-quality-sensors-overview.pdf)）は白色 LED インジケーターを使用しますが、その状態は SV11 の青色 LED と同様です。

<div align="left" data-with-frame="true"><img src="/files/f94381d25c7a78fc03fdb0ad03308cf8daf0e603" alt=""></div>

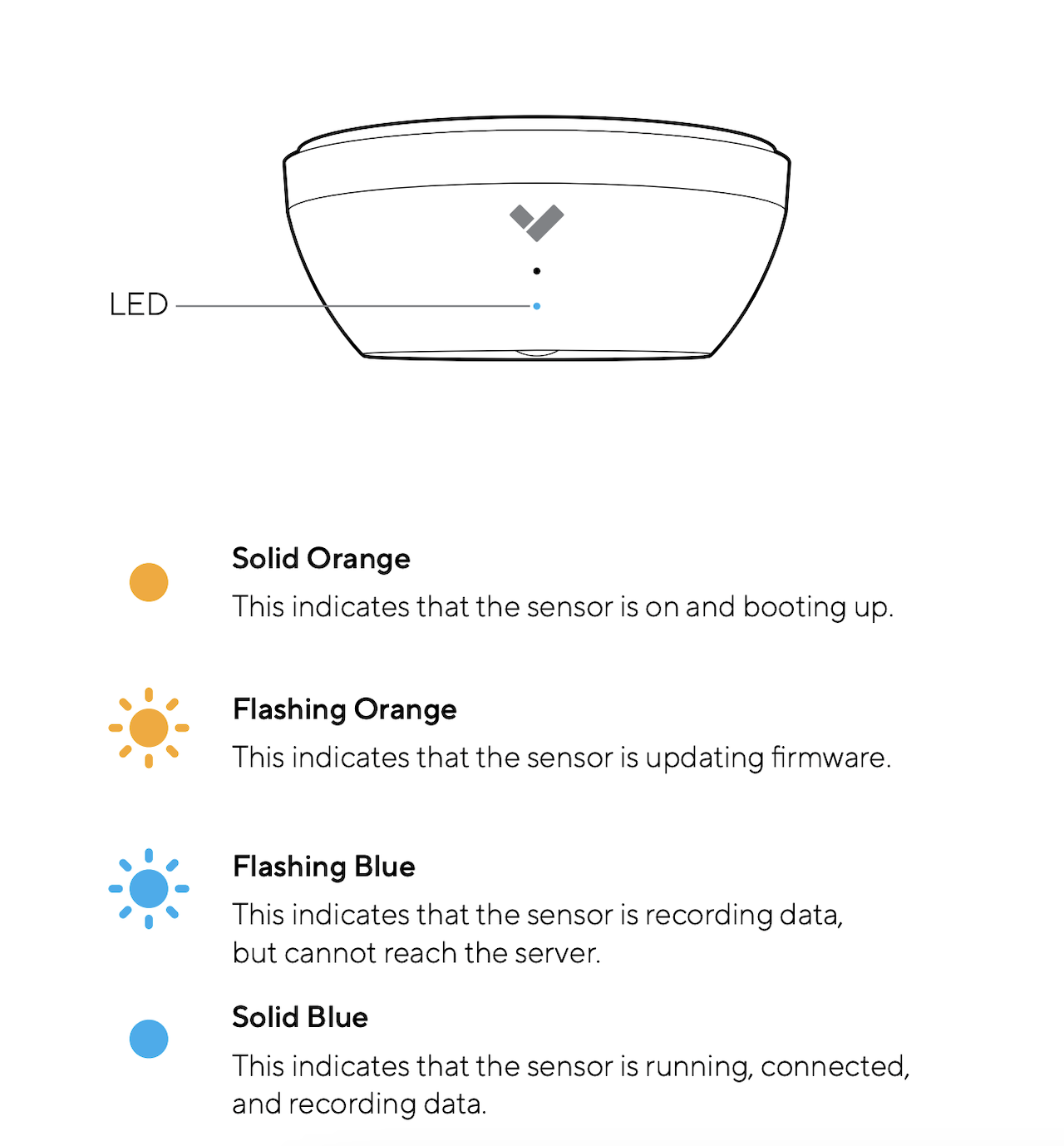

## SV11 シリーズ

この [SV11](https://www.verkada.com/sensors/sv11/) シリーズは、すべての Verkada カメラと同じ LED の規則に従っています。

<div align="left" data-with-frame="true"><img src="/files/e43f2b5664137b6c5dd643e630902d96ad695ab5" alt=""></div>


---
