# AC41 Status LED

Learn the status of the Verkada AC41 LED codes

The Verkada [AC41 4-Door Controller](https://docs.verkada.com/docs/door-controller-ac41-datasheet.pdf) has an LED (at the top left) that shows the status of the device at a glance.

***

## LED statuses

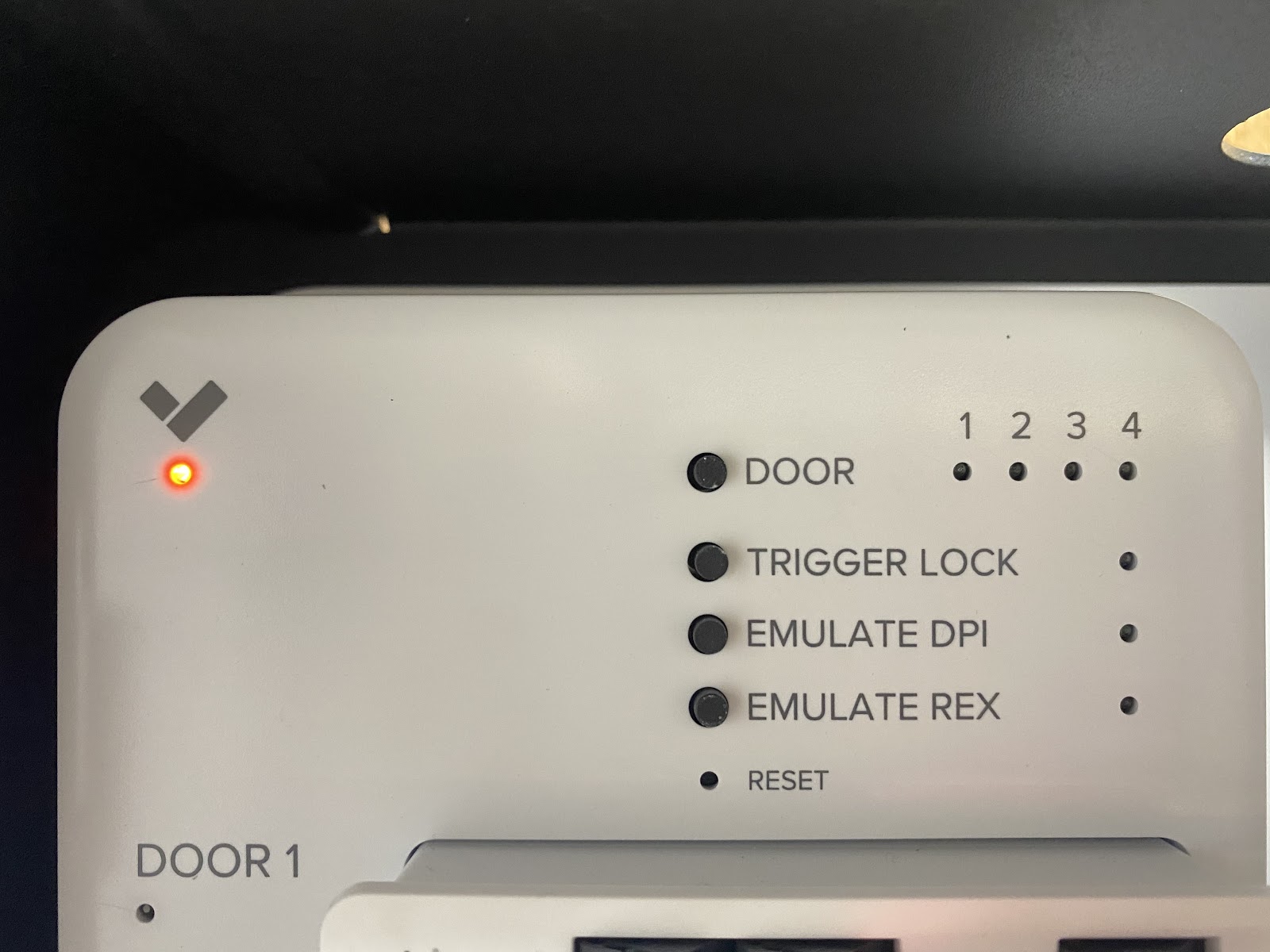

**Solid orange**—The controller is on and booting up.

<div align="left" data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-f22714abe090173d22a51304b9a7d7403ba727a3%2F4e6bde85229234628286aff6bcbb822025020dfe.jpg?alt=media" alt=""></div>

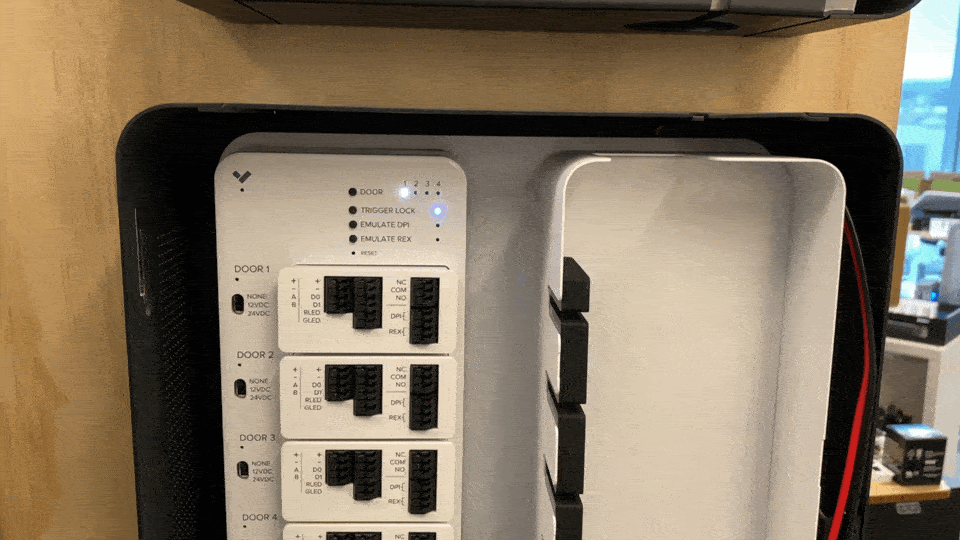

**Flashing orange**—The controller is updating its firmware.

<div data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-ae014fc3d76ca8db97ae2af441832053a3d54a83%2F671ee491ae8303e173771d0012daac6333ae04b6.gif?alt=media" alt=""></div>

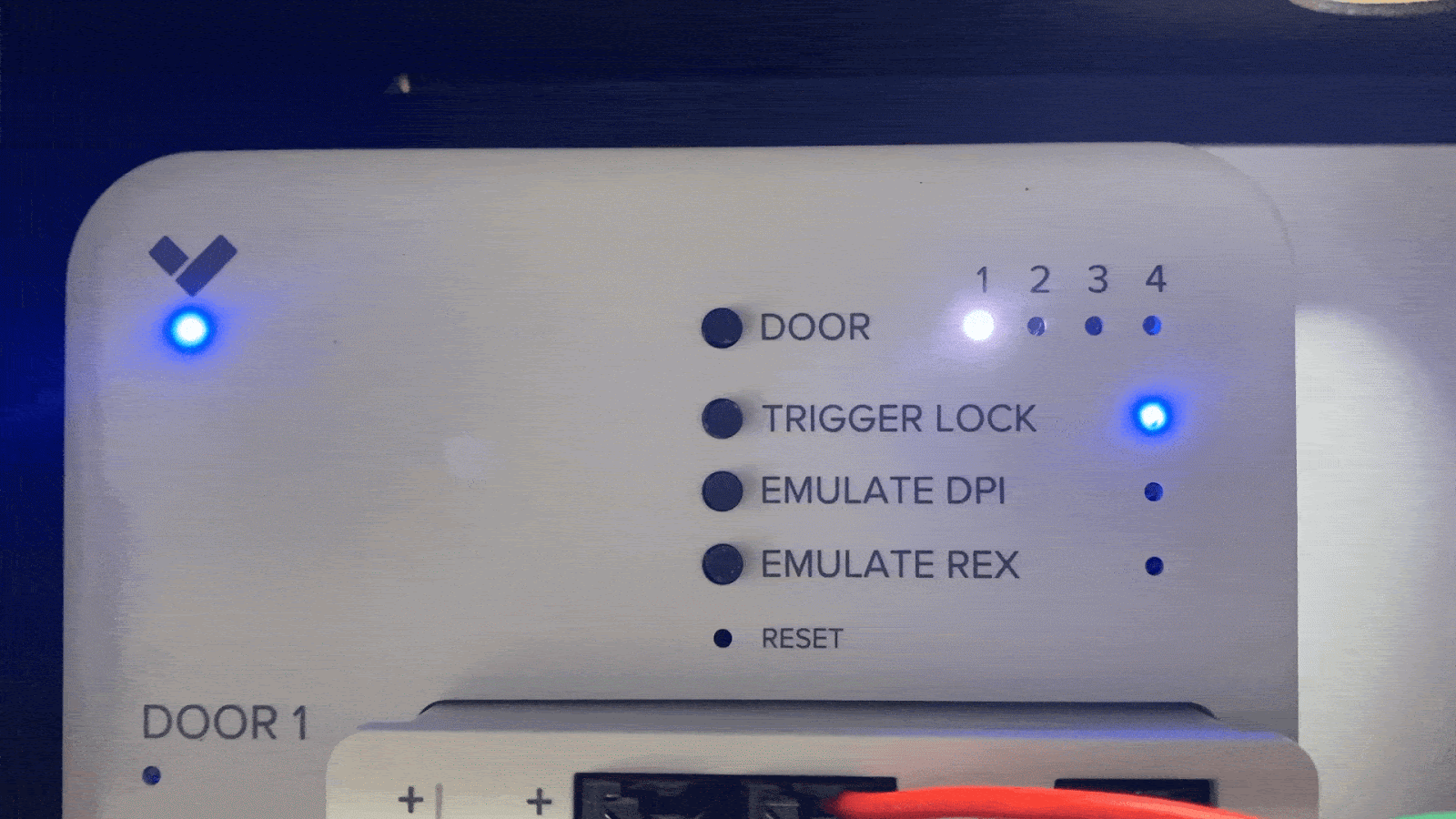

**Flashing blue**—The controller is managing doors, but cannot reach the server. Learn more about the [required network settings](/access-control/getting-started/access-control-network-settings.md) to help get the controller online.

<div data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-49ebae279e670d98a215960809efadb22db3039e%2Fdc159f2160c530cbc7cbc0973b871fafd83382cd.gif?alt=media" alt=""></div>

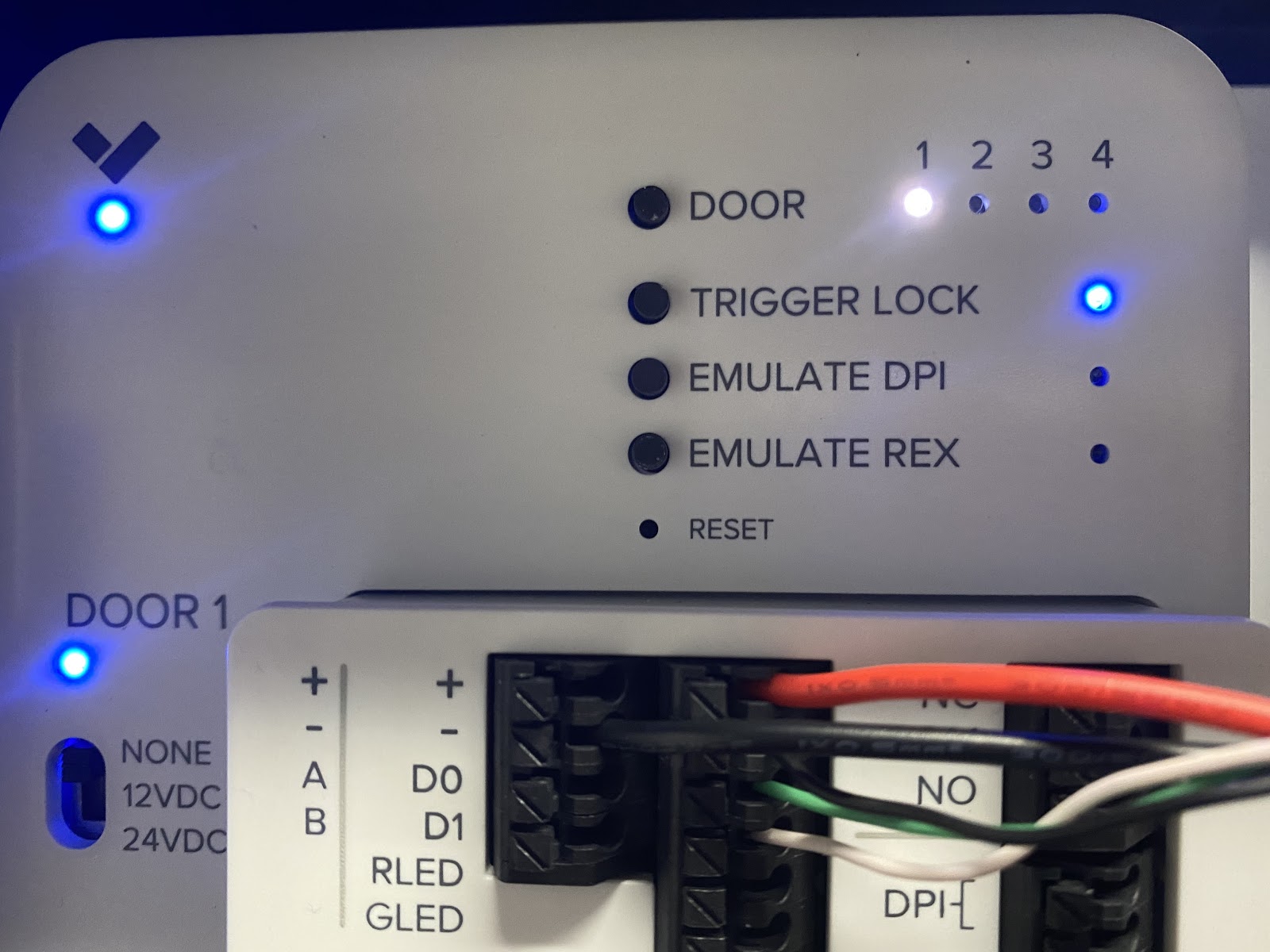

**Solid blue**—Full connection to Verkada servers.

<div data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-e41c03ccb0986f2f280fef943c66409500ea96d7%2F13a78913cb6edc34e8a7aa6f106627e71c228d80.jpg?alt=media" alt=""></div>

**Flashing pink**—When you select **identify** under the controller settings, the controller flashes pink to help you identify the device.

<div data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-5bfd0a558ba37b88155392bde31b4d58f7ef105e%2Fc27d433fee6716094ebf0049756b684aa4e4d023.gif?alt=media" alt=""></div>


---
