# AC41 ステータス LED
Verkada AC41 の LED コードの状態について学ぶ
Verkada [AC41 4ドア コントローラー](https://docs.verkada.com/docs/door-controller-ac41-datasheet.pdf) 左上に LED があり、デバイスの状態をひと目で確認できます。
***
## LED ステータス

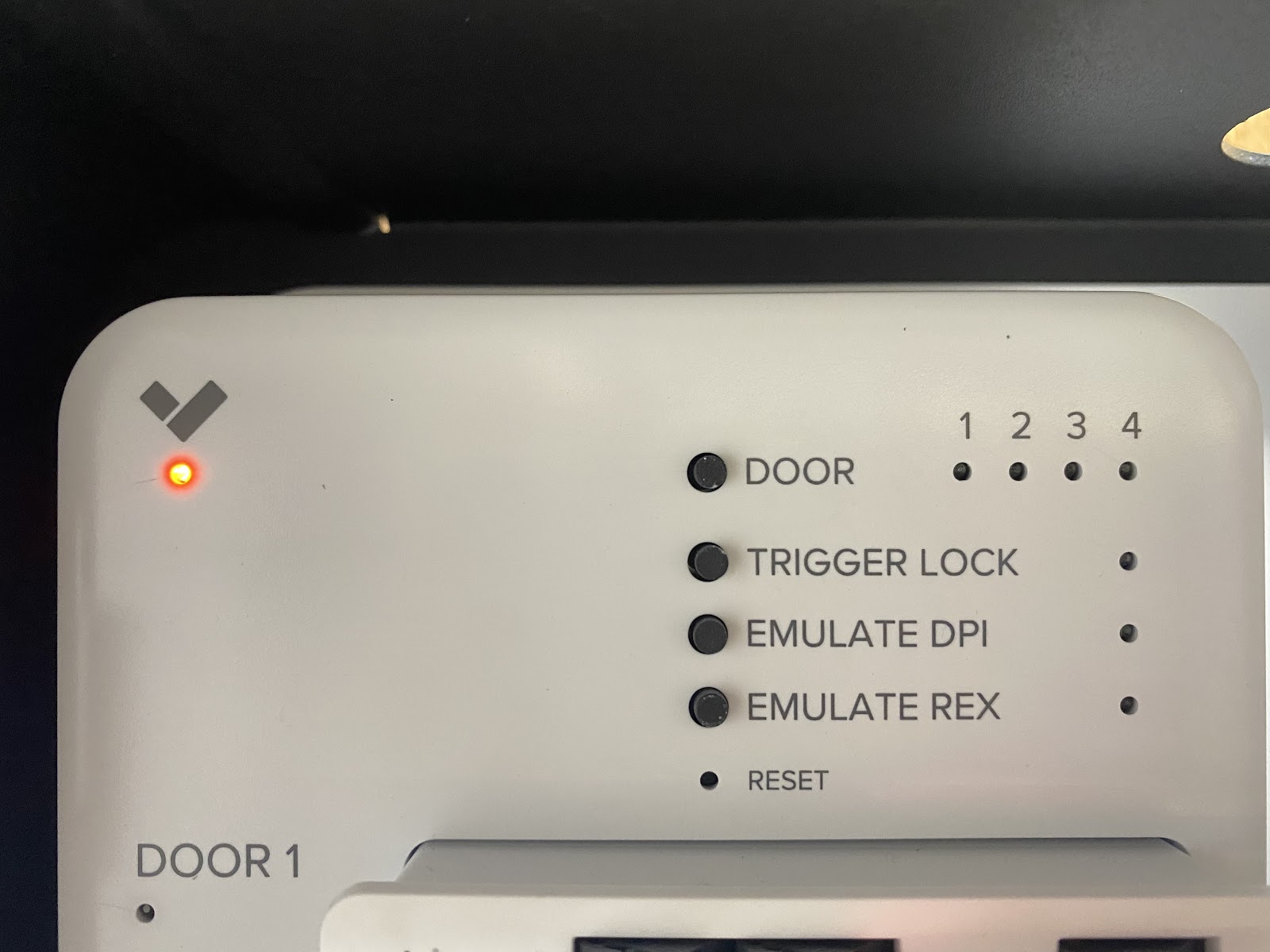

**オレンジの点灯**—コントローラーはオンになっており、起動中です。

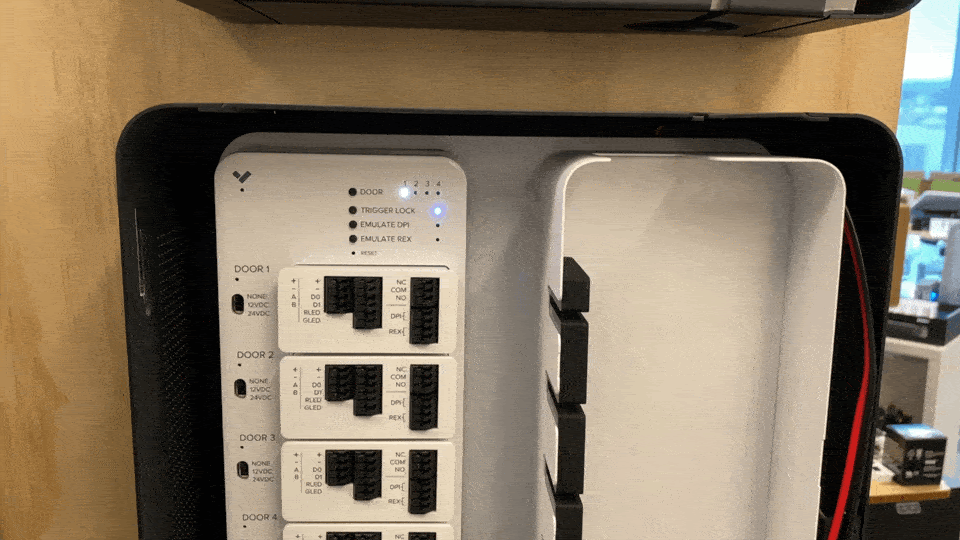

**オレンジの点滅**—コントローラーはファームウェアを更新しています。

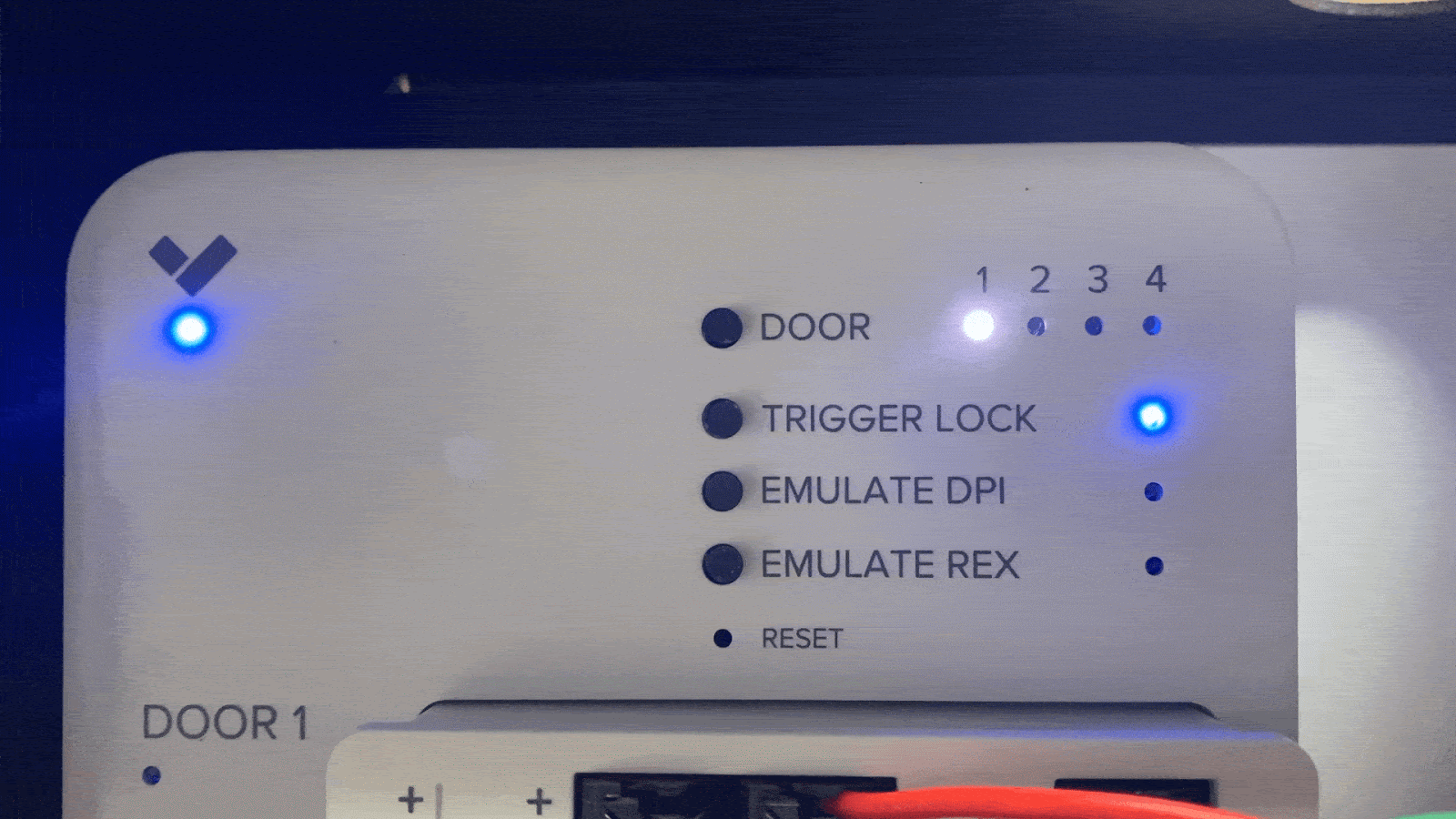

**青の点滅**—コントローラーはドアを管理していますが、サーバーに接続できません。Verkada について詳しく見る [必要なネットワーク設定](/access-control/ja/hajimeni/access-control-network-settings.md) は、コントローラーをオンラインにするのに役立ちます。

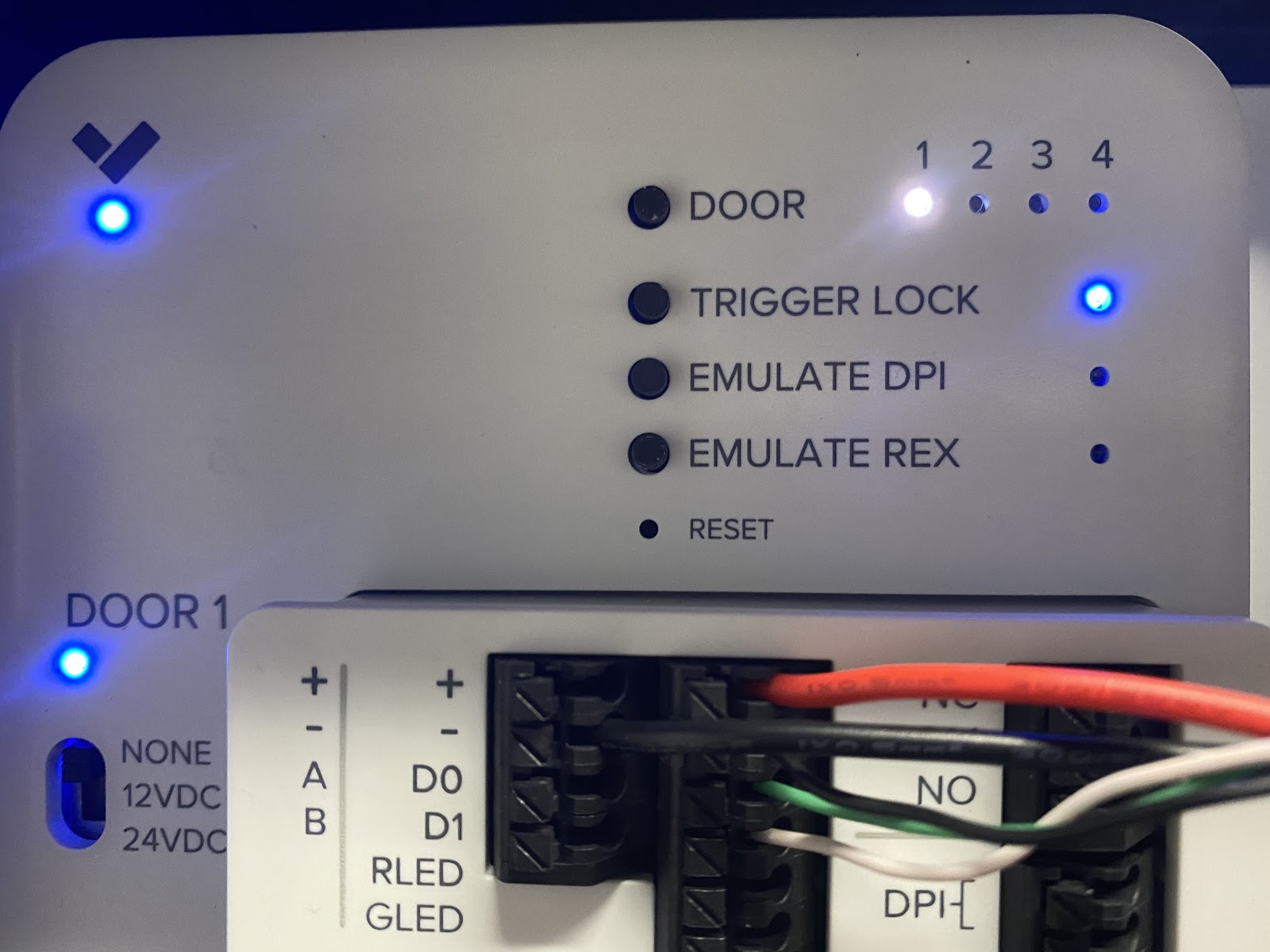

**青の点灯**—Verkada サーバーへの完全な接続。

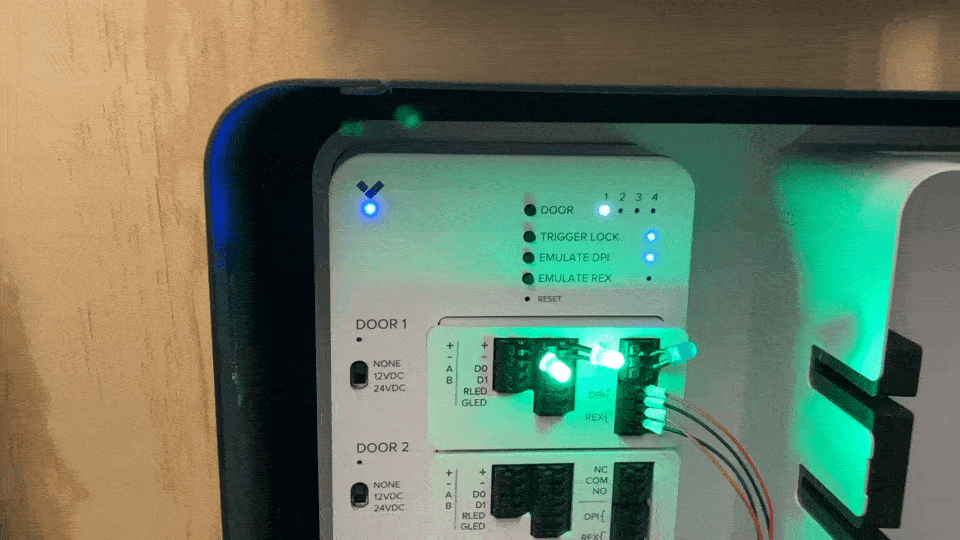

**ピンクの点滅**— **識別** をコントローラー設定で選ぶと、コントローラーがピンクに点滅し、デバイスの識別に役立ちます。
---
