# Voyant d’état de l’AC41

Découvrez la signification des codes LED de l’AC41 Verkada

Le Verkada [Contrôleur AC41 à 4 portes](https://docs.verkada.com/docs/door-controller-ac41-datasheet.pdf) dispose d'une LED (en haut à gauche) qui indique l'état de l'appareil d'un coup d'œil.

***

## États des LED

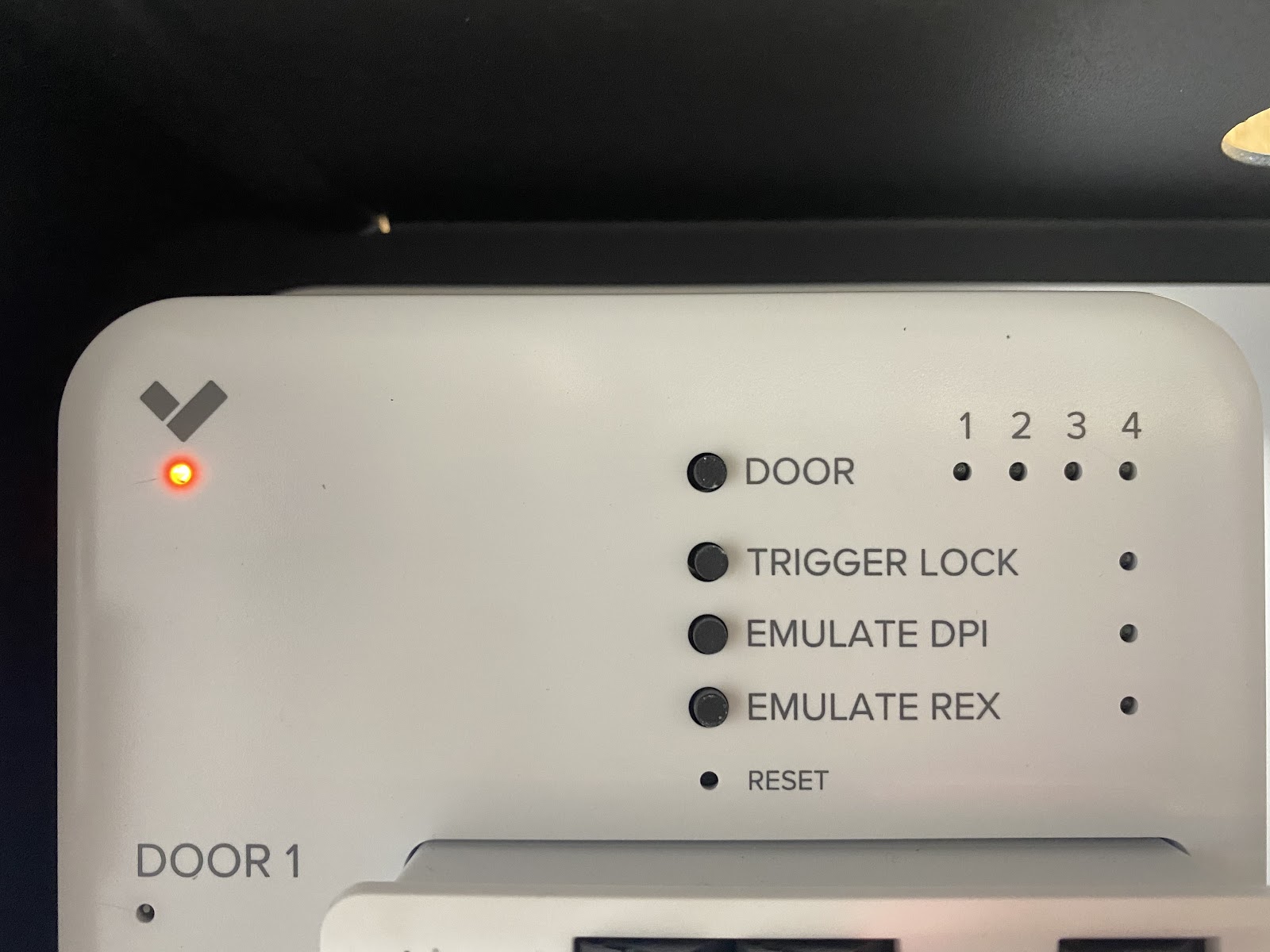

**Orange fixe**—Le contrôleur est allumé et en cours de démarrage.

<div align="left" data-with-frame="true"><img src="https://1006431132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-f22714abe090173d22a51304b9a7d7403ba727a3%2F4e6bde85229234628286aff6bcbb822025020dfe.jpg?alt=media" alt=""></div>

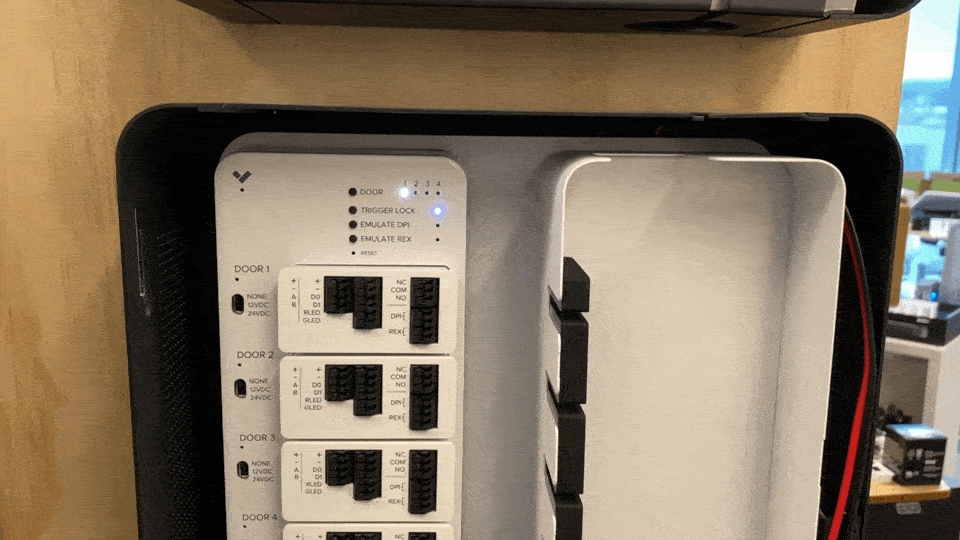

**Orange clignotant**—Le contrôleur met à jour son micrologiciel.

<div data-with-frame="true"><img src="https://1006431132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-ae014fc3d76ca8db97ae2af441832053a3d54a83%2F671ee491ae8303e173771d0012daac6333ae04b6.gif?alt=media" alt=""></div>

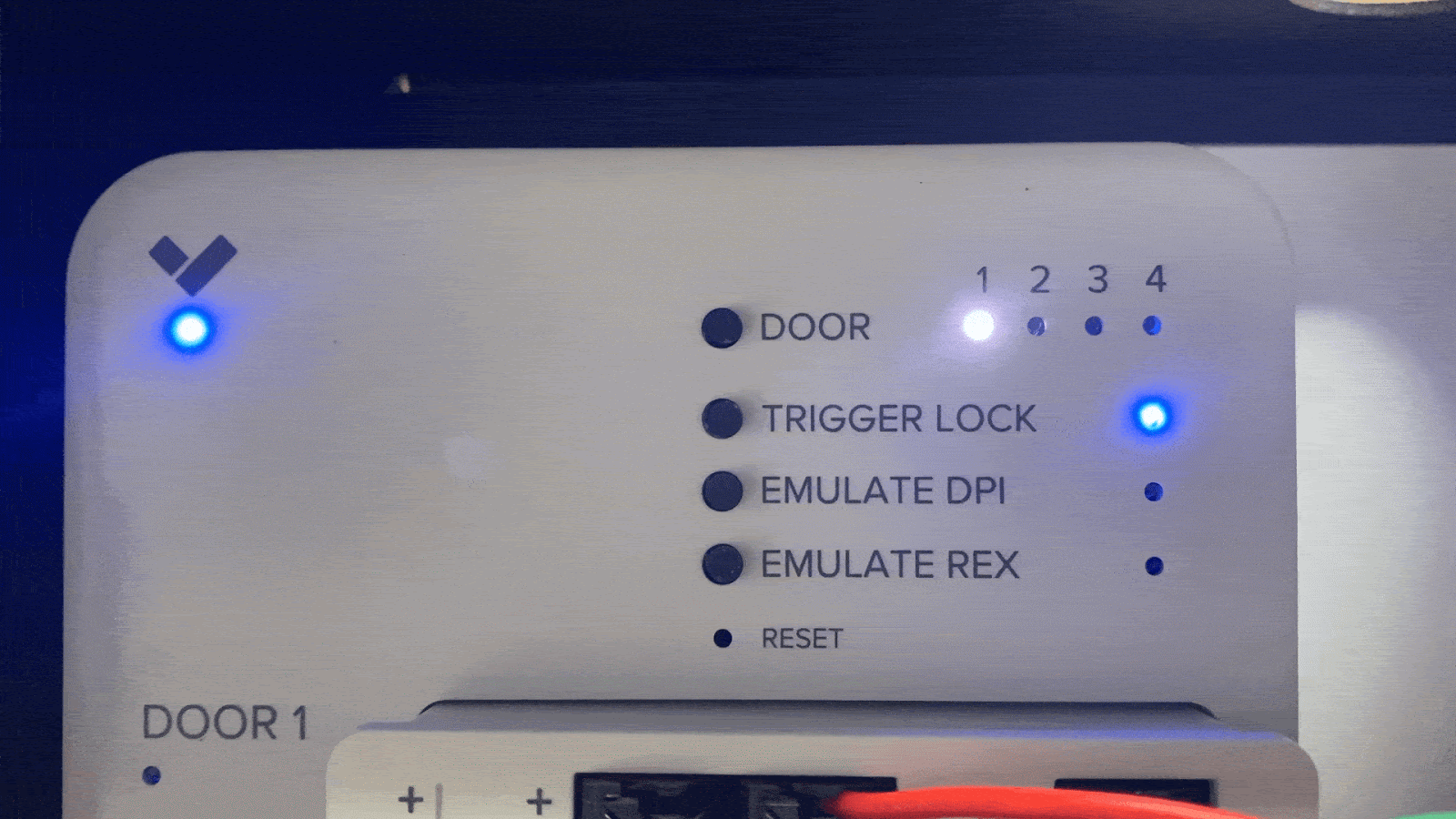

**Bleu clignotant**—Le contrôleur gère les portes, mais ne parvient pas à joindre le serveur. En savoir plus sur les [paramètres réseau requis](/access-control/fr/prise-en-main/access-control-network-settings.md) pour aider à mettre le contrôleur en ligne.

<div data-with-frame="true"><img src="https://1006431132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-49ebae279e670d98a215960809efadb22db3039e%2Fdc159f2160c530cbc7cbc0973b871fafd83382cd.gif?alt=media" alt=""></div>

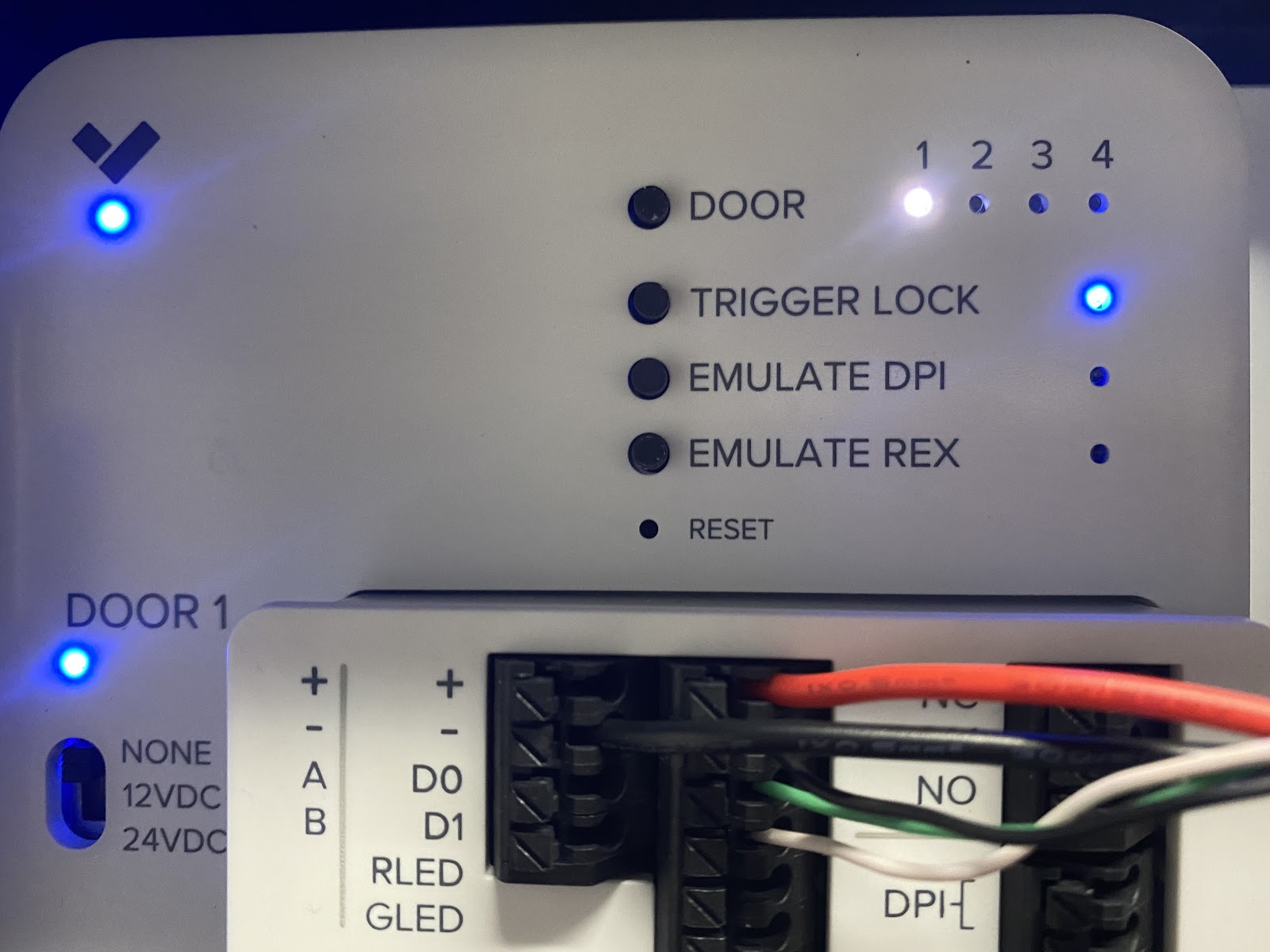

**Bleu fixe**—Connexion complète aux serveurs Verkada.

<div data-with-frame="true"><img src="https://1006431132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-e41c03ccb0986f2f280fef943c66409500ea96d7%2F13a78913cb6edc34e8a7aa6f106627e71c228d80.jpg?alt=media" alt=""></div>

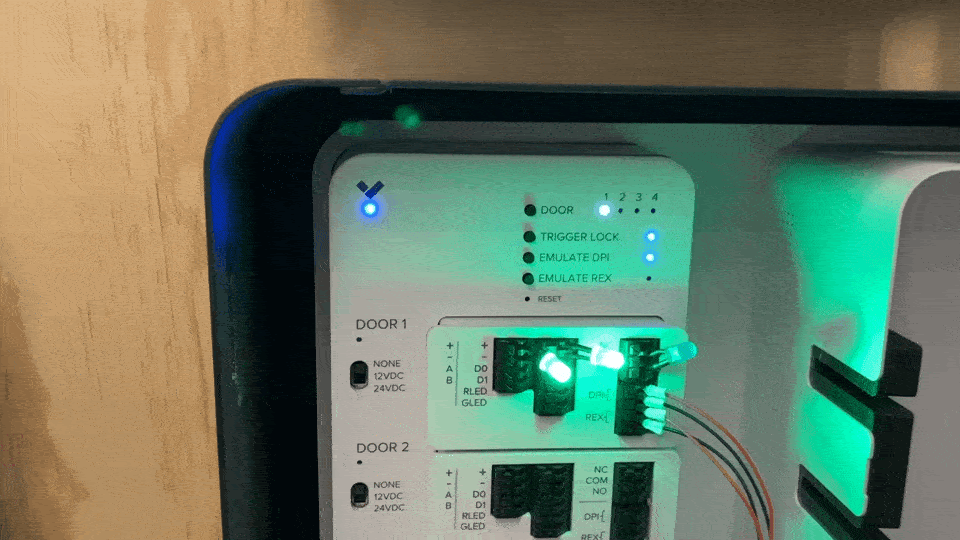

**Rose clignotant**—Lorsque vous sélectionnez **identifier** dans les paramètres du contrôleur, le contrôleur clignote en rose pour vous aider à identifier l'appareil.

<div data-with-frame="true"><img src="https://1006431132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-5bfd0a558ba37b88155392bde31b4d58f7ef105e%2Fc27d433fee6716094ebf0049756b684aa4e4d023.gif?alt=media" alt=""></div>


---
