# Formatos de PIN de teclado

Todos los controladores de acceso Verkada están clasificados para alimentar lectores a 12 V hasta 250 mA a través de la conexión + (VIN) y – (GND). Los lectores Verkada utilizan la entrada de 4 puertos (etiquetada como **RS-485**) mientras que los lectores Wiegand estándar usan las entradas de 4 puertos (etiquetadas **Wiegand**) y la alimentación compartida de la conexión RS-485. Lea los pasos para [conectar el lector](/access-control/es/instalacion/wire-a-door-to-a-verkada-access-controller.md) a un controlador de acceso.

{% hint style="warning" %}
Los controladores de acceso Verkada aceptan ráfagas de 4 bits para la transmisión del teclado.
{% endhint %}

{% hint style="info" %}
Configure el formato de transmisión de su lector según los ajustes del manual del fabricante.
{% endhint %}

***

## Formatos de transmisión de teclado compatibles

Verkada admite los formatos descritos a continuación. Cuando configure sus lectores a 4 bits para la transmisión del teclado, variará según su modelo.

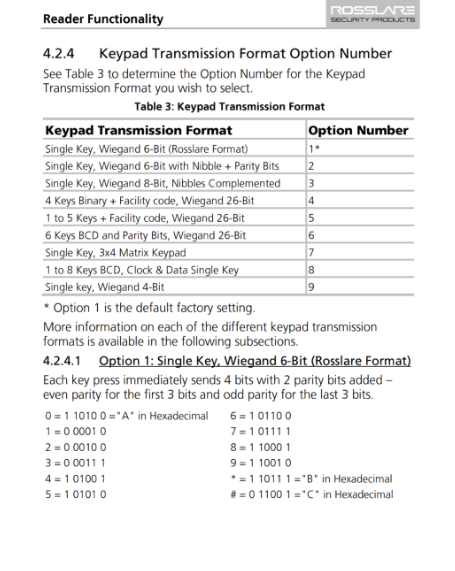

**Ejemplo: lector Rosslare AYC-Q60**

Para el **Formato de transmisión del teclado**, utilice la opción **9** como su Wiegand de 4 bits.

<div align="left" data-with-frame="true"><figure><img src="/files/b5e94e97d5e80efc2c822fd094ba3cc486f43597" alt=""><figcaption></figcaption></figure></div>


---
