# LED de estado AC41

Obtenga información sobre los códigos LED de estado del Verkada AC41

La Verkada [Controlador de 4 puertas AC41](https://docs.verkada.com/docs/door-controller-ac41-datasheet.pdf) tiene un LED (en la parte superior izquierda) que muestra de un vistazo el estado del dispositivo.

***

## Estados del LED

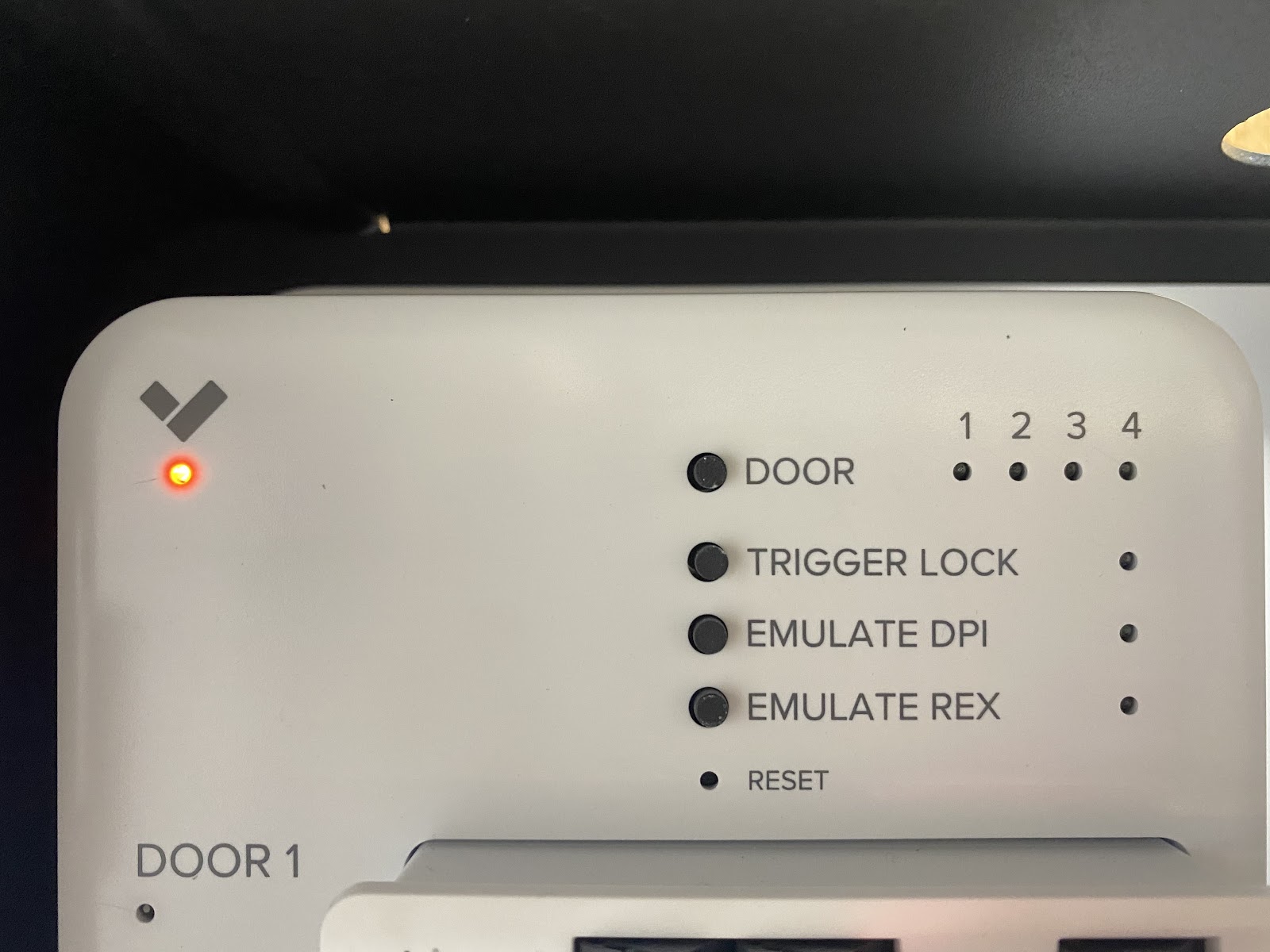

**Naranja fijo**—El controlador está encendido y arrancando.

<div align="left" data-with-frame="true"><img src="https://1576776939-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-f22714abe090173d22a51304b9a7d7403ba727a3%2F4e6bde85229234628286aff6bcbb822025020dfe.jpg?alt=media" alt=""></div>

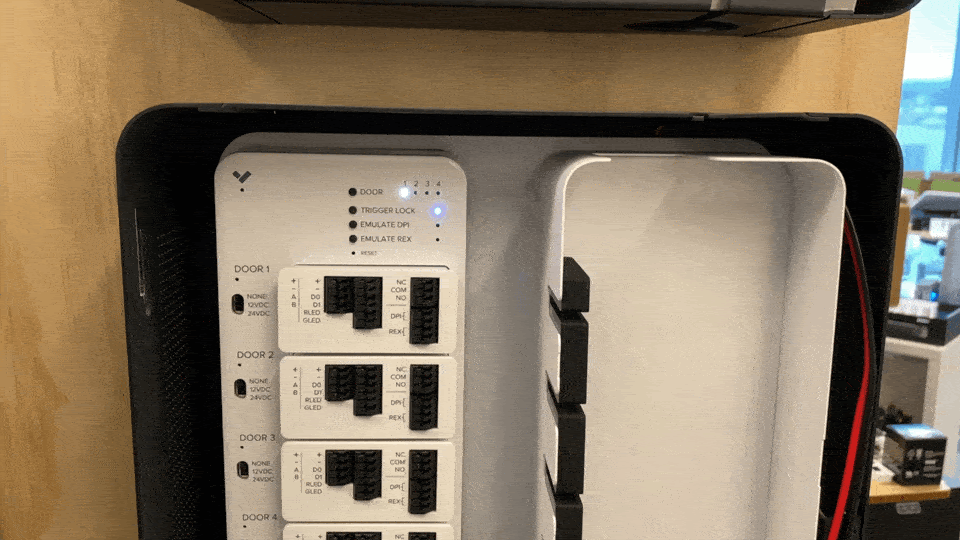

**Naranja intermitente**—El controlador está actualizando su firmware.

<div data-with-frame="true"><img src="https://1576776939-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-ae014fc3d76ca8db97ae2af441832053a3d54a83%2F671ee491ae8303e173771d0012daac6333ae04b6.gif?alt=media" alt=""></div>

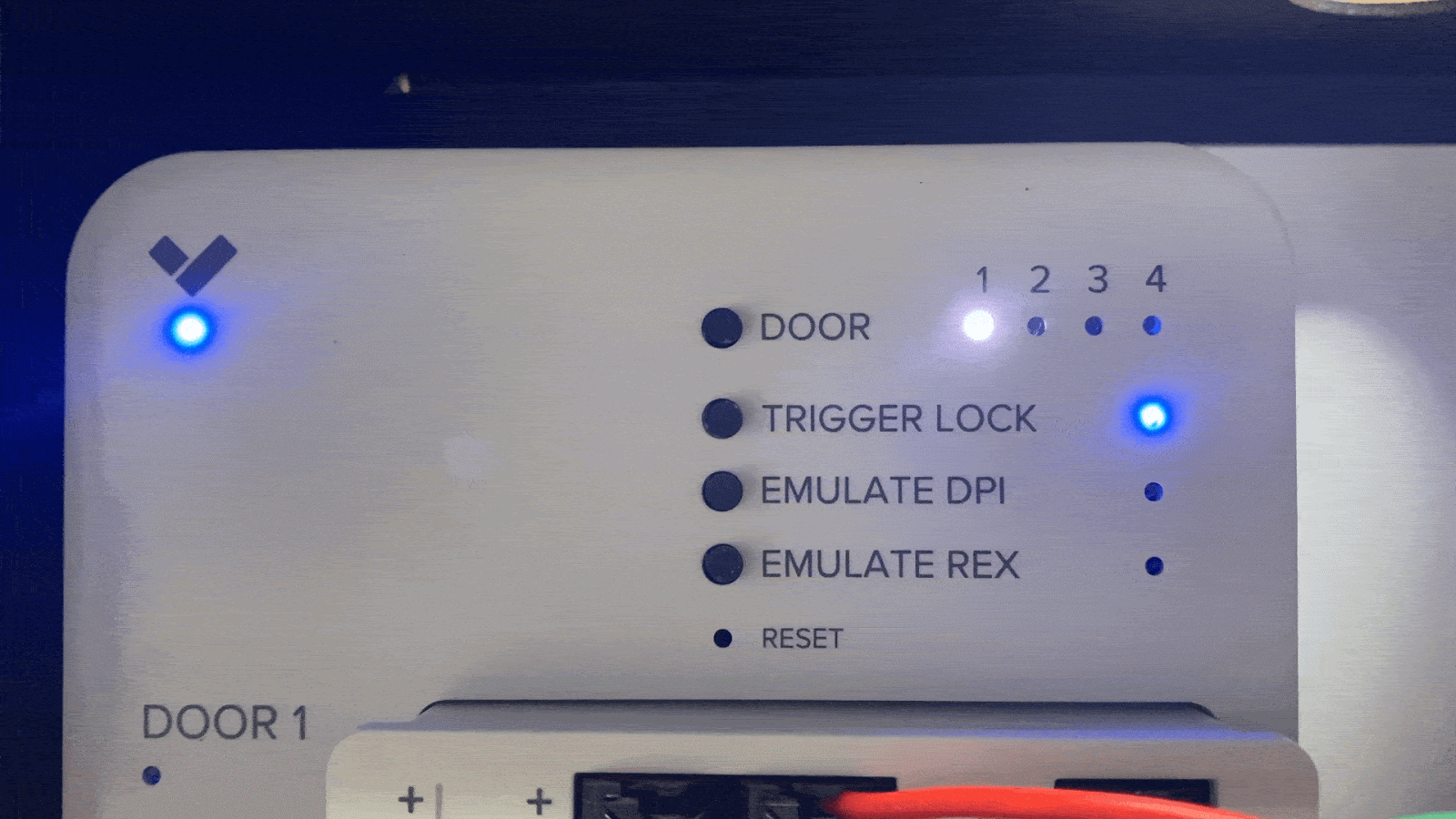

**Azul intermitente**—El controlador está gestionando las puertas, pero no puede conectarse al servidor. Obtén más información sobre la [configuración de red requerida](/access-control/es/primeros-pasos/access-control-network-settings.md) para ayudar a poner el controlador en línea.

<div data-with-frame="true"><img src="https://1576776939-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-49ebae279e670d98a215960809efadb22db3039e%2Fdc159f2160c530cbc7cbc0973b871fafd83382cd.gif?alt=media" alt=""></div>

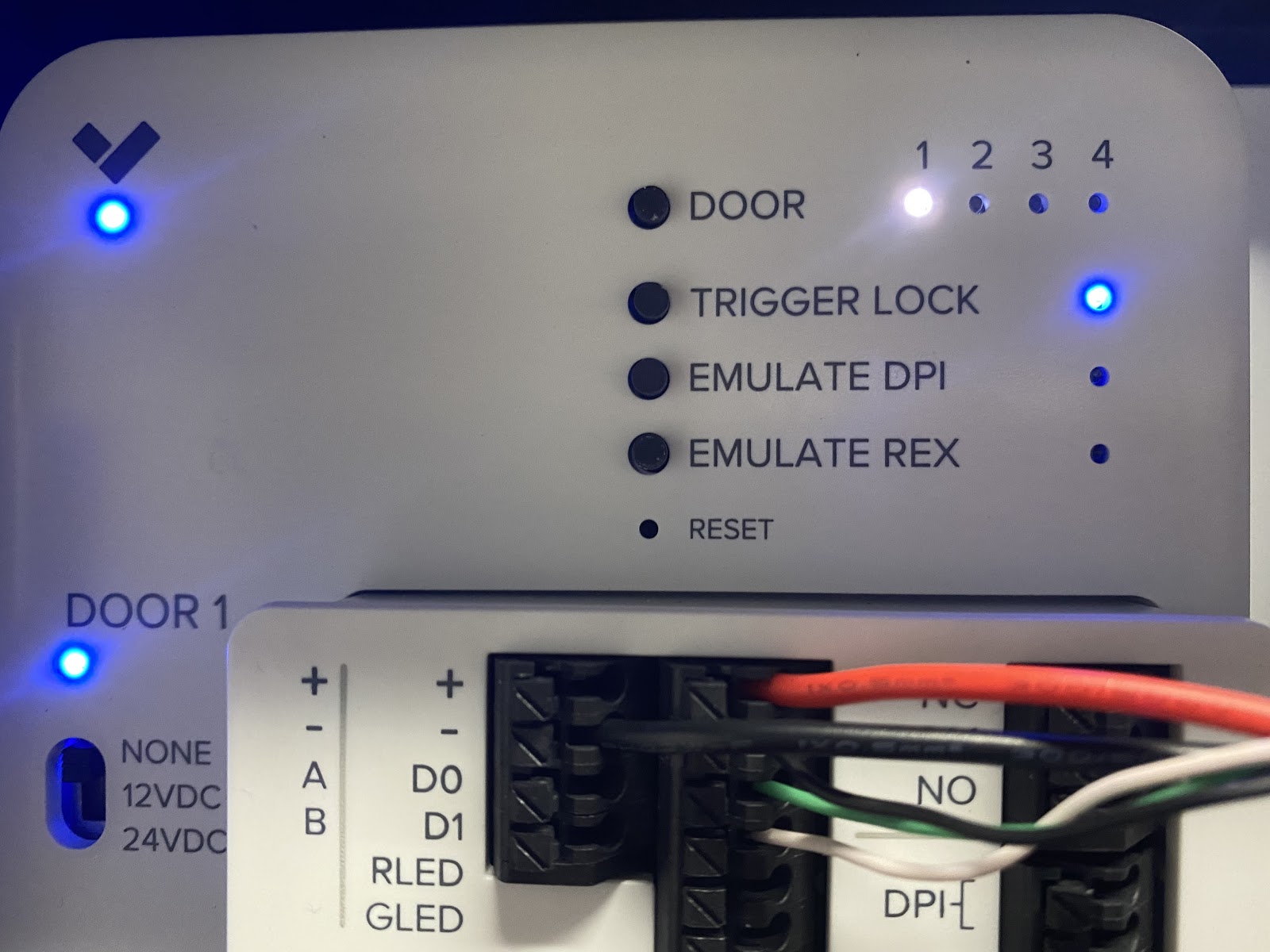

**Azul fijo**—Conexión completa a los servidores de Verkada.

<div data-with-frame="true"><img src="https://1576776939-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-e41c03ccb0986f2f280fef943c66409500ea96d7%2F13a78913cb6edc34e8a7aa6f106627e71c228d80.jpg?alt=media" alt=""></div>

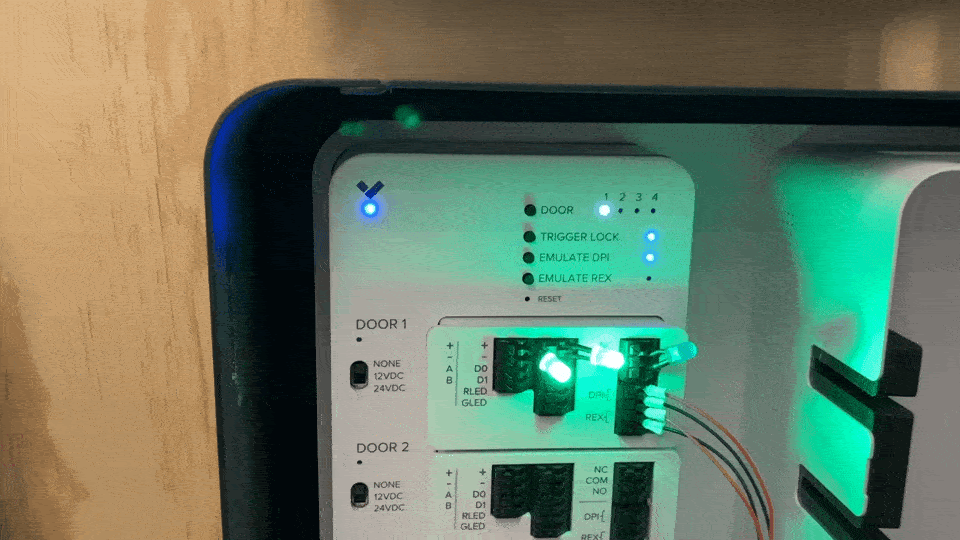

**Rosa intermitente**—Cuando seleccionas **identificar** en la configuración del controlador, el controlador parpadea en rosa para ayudarte a identificar el dispositivo.

<div data-with-frame="true"><img src="https://1576776939-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-5bfd0a558ba37b88155392bde31b4d58f7ef105e%2Fc27d433fee6716094ebf0049756b684aa4e4d023.gif?alt=media" alt=""></div>


---
