# Configurar control de acceso para una esclusa

Algunas instalaciones requieren necesidades de seguridad física más rigurosas, y su solución de control de acceso debe poder admitir estas aplicaciones especiales. Este artículo muestra cómo instalar y configurar el Verkada AC42 para un man trap.

A *man trap* es un conjunto de 2 puertas donde la primera debe cerrarse antes de que se permita abrir la segunda, similar a una esclusa de aire.

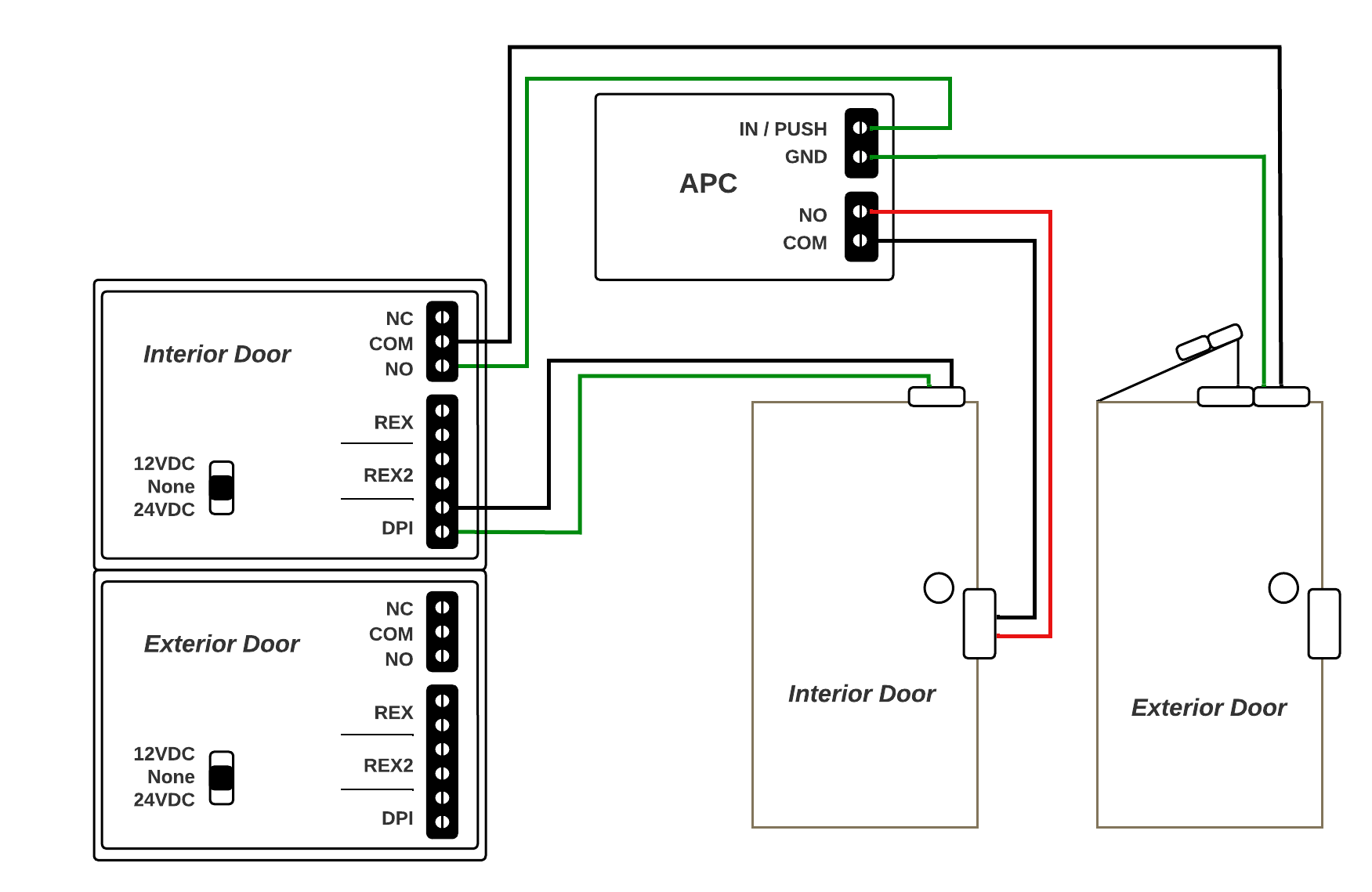

Para admitir esto, debe cablear las puertas al AC42 de una manera específica para un man trap:

![](/files/a71823c1e527d791a9dd59e0e0954bcbe7d006cf)

{% hint style="warning" %}
Conectar la cerradura de la puerta interior en serie con el interruptor de contacto de la puerta exterior no permite que la puerta interior se abra hasta que la puerta exterior esté cerrada.
{% endhint %}


---
