# AC41-Status-LED

Erfahren Sie mehr über den Status der LED-Codes des Verkada AC41

Die Verkada [AC41 4-Tür-Controller](https://docs.verkada.com/docs/door-controller-ac41-datasheet.pdf) hat eine LED (oben links), die den Status des Geräts auf einen Blick anzeigt.

***

## LED-Status

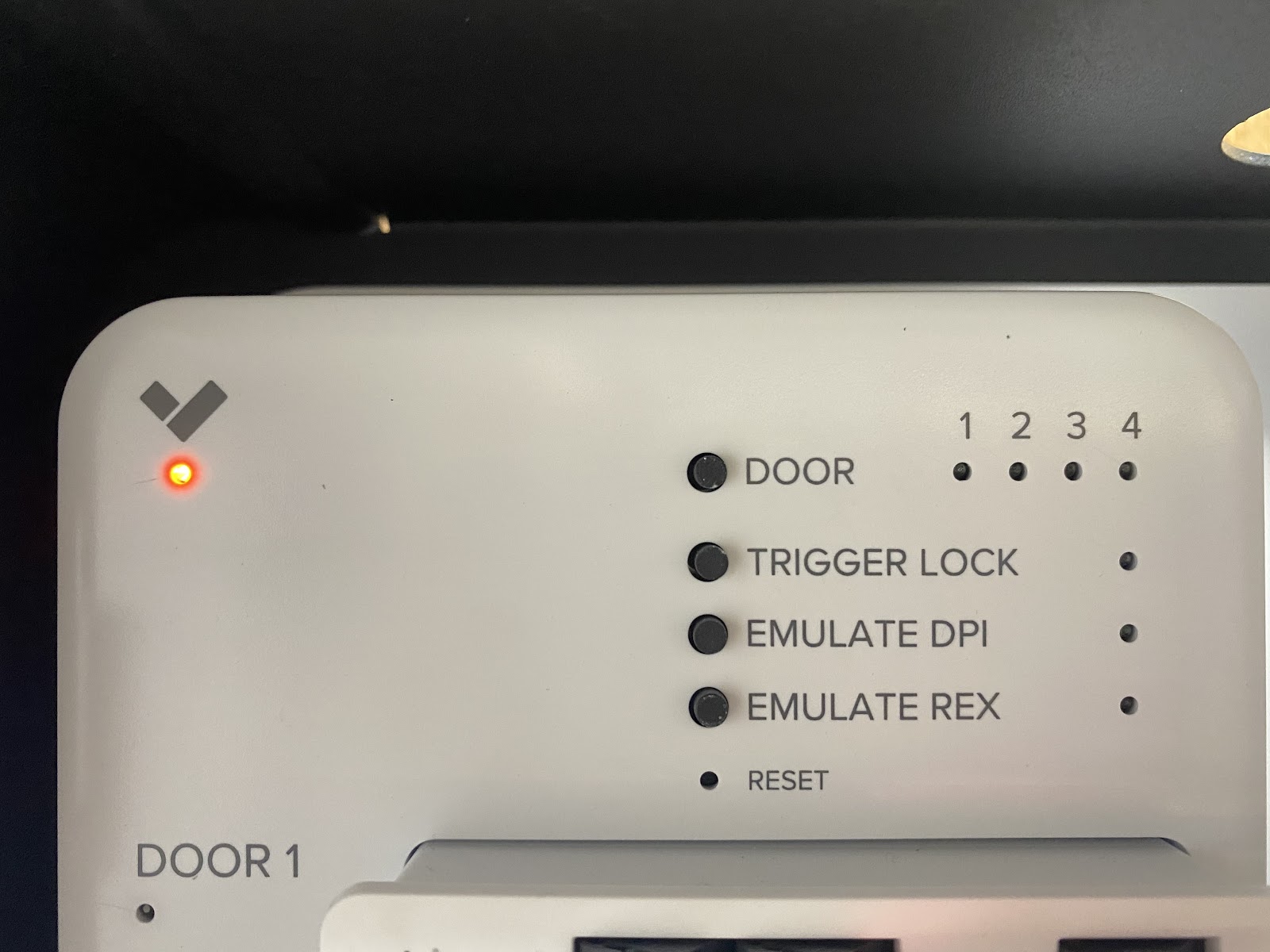

**Durchgehend orange**—Der Controller ist eingeschaltet und wird gestartet.

<div align="left" data-with-frame="true"><img src="https://3342059292-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-f22714abe090173d22a51304b9a7d7403ba727a3%2F4e6bde85229234628286aff6bcbb822025020dfe.jpg?alt=media" alt=""></div>

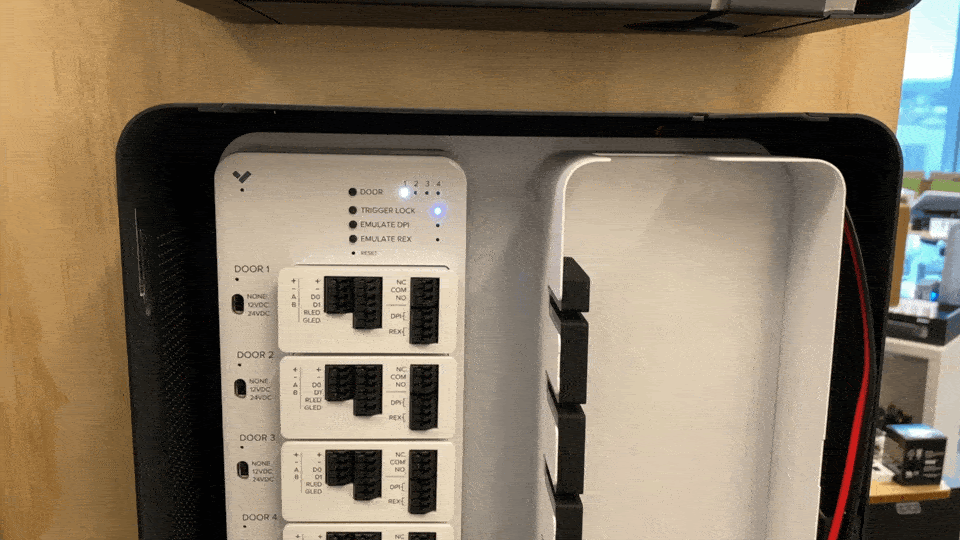

**Blinkt orange**—Der Controller aktualisiert seine Firmware.

<div data-with-frame="true"><img src="https://3342059292-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-ae014fc3d76ca8db97ae2af441832053a3d54a83%2F671ee491ae8303e173771d0012daac6333ae04b6.gif?alt=media" alt=""></div>

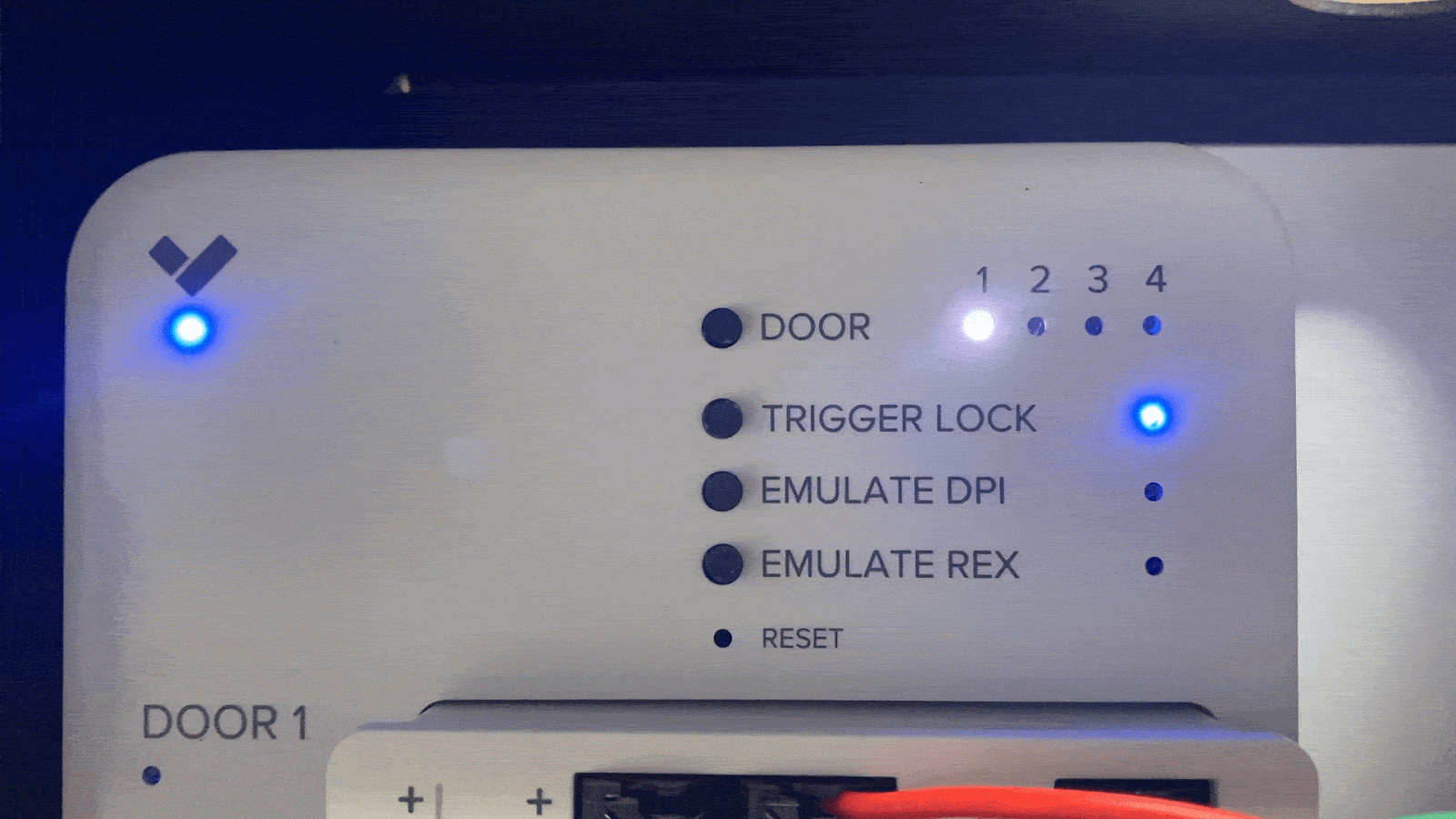

**Blinkt blau**—Der Controller verwaltet Türen, kann den Server jedoch nicht erreichen. Erfahren Sie mehr über die [erforderlichen Netzwerkeinstellungen](/access-control/de/erste-schritte/access-control-network-settings.md) um den Controller online zu bringen.

<div data-with-frame="true"><img src="https://3342059292-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-49ebae279e670d98a215960809efadb22db3039e%2Fdc159f2160c530cbc7cbc0973b871fafd83382cd.gif?alt=media" alt=""></div>

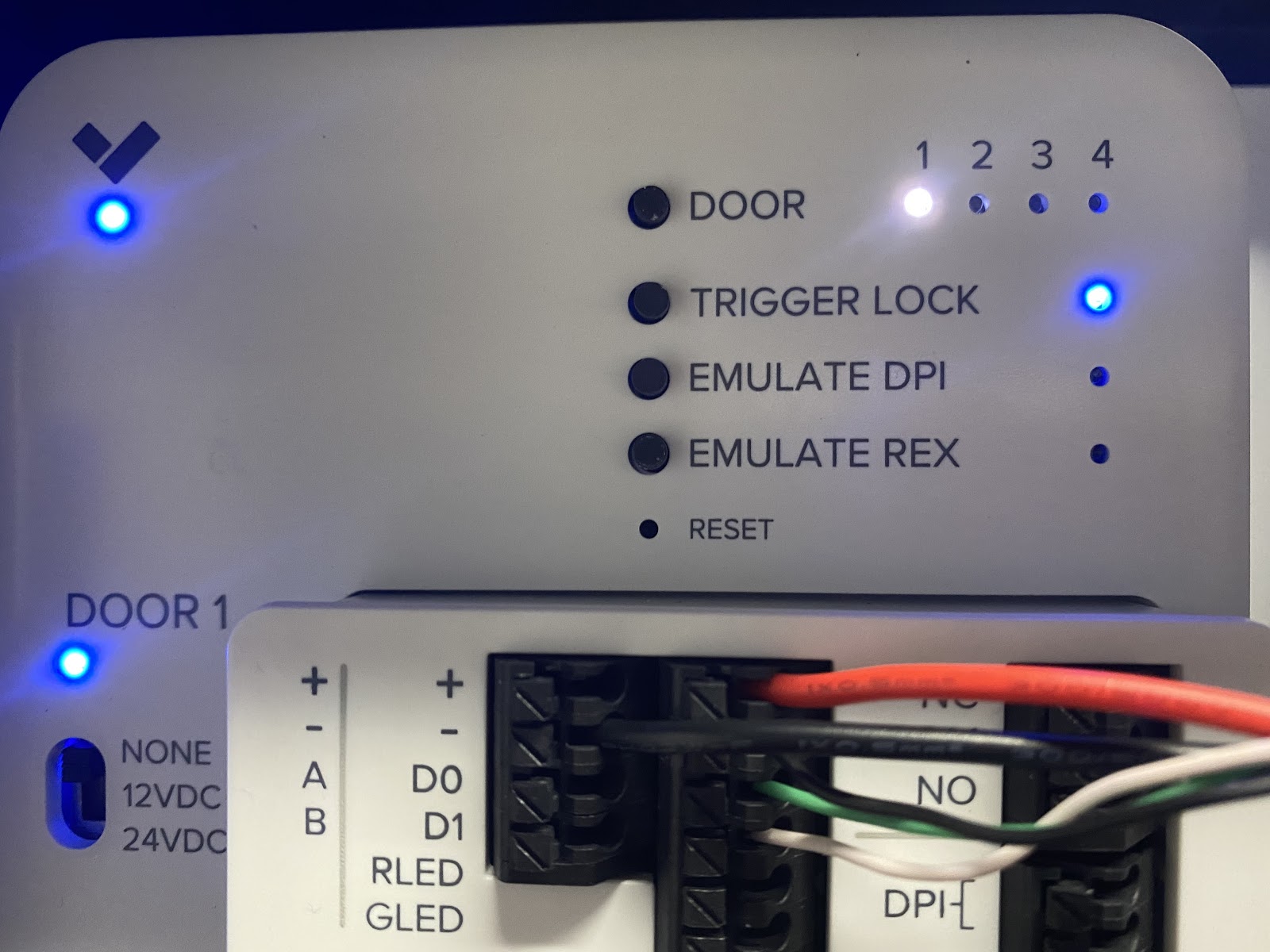

**Durchgehend blau**—Volle Verbindung zu den Verkada-Servern.

<div data-with-frame="true"><img src="https://3342059292-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-e41c03ccb0986f2f280fef943c66409500ea96d7%2F13a78913cb6edc34e8a7aa6f106627e71c228d80.jpg?alt=media" alt=""></div>

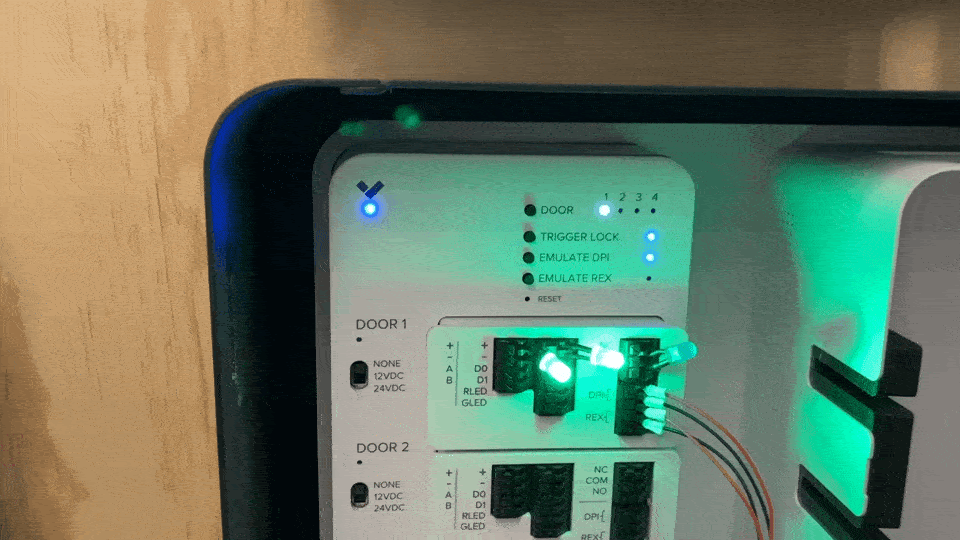

**Blinkt pink**—Wenn Sie **identifizieren** unter den Controller-Einstellungen auswählen, blinkt der Controller pink, damit Sie das Gerät identifizieren können.

<div data-with-frame="true"><img src="https://3342059292-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-5bfd0a558ba37b88155392bde31b4d58f7ef105e%2Fc27d433fee6716094ebf0049756b684aa4e4d023.gif?alt=media" alt=""></div>


---
