# Emergency Lockdown

Verkada access controllers can perform emergency lockdown events to help protect you, your colleagues, and your assets. During a lockdown event, all selected doors and/or buildings are locked down, and access to these doors is restricted to authorized user groups.

{% hint style="danger" %}

* You must be an [Access Site Admin](https://help.verkada.com/access-control/roles-and-permissions-for-access-control) to create a lockdown scenario for a site.

&#x20;

* Lockdown outputs and inputs require a lockdown scenario for the site where the controller is installed.
  {% endhint %}

***

## Create a lockdown scenario

{% stepper %}
{% step %}

#### In Verkada Command, go to **All Products** > **Access** .

{% endstep %}

{% step %}

#### Select a **site** from the **All Sites** menu\*\*.\*\*

{% endstep %}

{% step %}

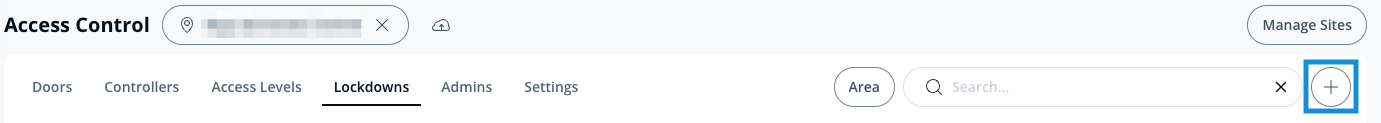

#### Click **Lockdowns**, then to create a new lockdown scenario.

<div align="left" data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-909b725a70bbf1538da259cdf596e6d31ceabb0b%2F19576c6d4217b028f4cf6632afde510585d8b047.png?alt=media" alt="" width="691"></div>
{% endstep %}

{% step %}

#### Follow the instructions in the configuration window to configure the lockdown scenario.

a. Under **Create**, provide a name and emergency message for the lockdown scenario.\
b. Under **Doors**, select doors from the site(s) that will lock down when the lockdown scenario is triggered.\
c. Under **Permissions**, specify who is able to trigger the lockdown scenario, release the lockdown scenario, or unlock doors during the lockdown scenario.
{% endstep %}
{% endstepper %}

{% hint style="warning" %}
If multiple sites are assigned to a lockdown scenario:

* If a user is not an [Access Site Admin](https://help.verkada.com/access-control/roles-and-permissions-for-access-control) for all the\*\* \*\*sites in the scenario, they can only add or remove doors from the sites where they have admin permissions.

&#x20;

* If an [AUX input](https://help.verkada.com/access-control/configuration-and-setup/configure-the-ax11-io-controller) is configured to trigger the lockdown scenario, a user must be an [Access Site Admin](https://help.verkada.com/access-control/roles-and-permissions-for-access-control) for **all** assigned sites to edit or delete the AUX input configuration.
  {% endhint %}

***

## Clone a lockdown scenario

{% stepper %}
{% step %}

#### In Command, go to **All Products** > **Access** .

{% endstep %}

{% step %}

#### Select a **site** from the **All Sites** menu\*\*.\*\*

{% endstep %}

{% step %}

#### Click **Lockdowns**, then select a lockdown.

{% endstep %}

{% step %}

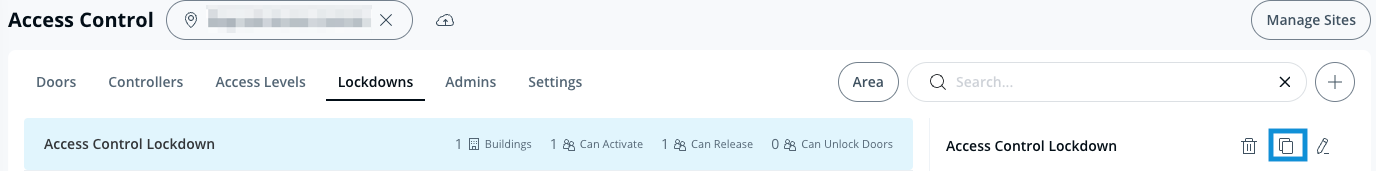

#### At the top right, click **Clone** .

<div align="left" data-with-frame="true"><img src="https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-d101d307d23431abf25b842c0952ac567da375a3%2F9058acd8a01fcc31a081abdcd9aca6e1461bee8d.png?alt=media" alt="" width="688"></div>
{% endstep %}

{% step %}

#### Select a site to cone to and click **Next**.

{% endstep %}

{% step %}

#### Follow the configuration window to configure the lockdown scenario and make changes.

{% endstep %}
{% endstepper %}

***

## Initiate a lockdown from Command

Once a lockdown scenario has been created, you will see a new **Lockdown** ![](https://134288481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaaHs5RfKqv9Z49mi02cC%2Fuploads%2Fgit-blob-05cc68071250443bf25b1dafb7ec5f3cf4210e01%2F992cc1cbb4bc651c1dc57375782953df9fe48843.png?alt=media)icon at the bottom left of your navigation bar.

{% stepper %}
{% step %}

#### At the bottom of your navigation bar, click **Lockdowns** .

{% endstep %}

{% step %}

#### Select the lockdown to initiate.

{% endstep %}

{% step %}

#### Click **Activate** to begin the lockdown.

{% endstep %}
{% endstepper %}

{% hint style="warning" %}
Lockdowns can also be triggered remotely from the [Verkada Pass App](https://help.verkada.com/access-control/configuration-and-setup/verkada-pass-app).
{% endhint %}

***

## Configure an AUX input to initiate a lockdown locally

Once a lockdown scenario has been created, you can configure an AUX input on an access controller to trigger the lockdown scenario when the AUX input is activated.

{% stepper %}
{% step %}

#### In Verkada Command, go to **All Products** > **Access** .

{% endstep %}

{% step %}

#### Under **Controllers**, select the access controller where you want to set up an AUX input.

{% endstep %}

{% step %}

#### From the access controller’s details page, click **Add** and select **AUX Input**.

{% endstep %}

{% step %}

#### Under **Settings**:

a. Enter a unique name.\
b. Select the desired name, port, and connection type.\
c. Click **Next**.
{% endstep %}

{% step %}

#### Under **Actions:**

a. Select **Lockdown Trigger** as the **Input Type**.\
b. Select the **Lockdown Scenario** that you want to trigger when the AUX input is activated.
{% endstep %}

{% step %}

#### Click **Done**.

{% endstep %}
{% endstepper %}

{% hint style="warning" %}
If an AUX input is configured to trigger a Lockdown Scenario that includes doors on other access controllers, the AUX input’s access controller will establish a local connection with the other access controllers through the local area network (LAN).\
​\
When the AUX input is activated, the local connection(s) will lock down all doors in the lockdown scenario through the local network. For more details, see [Cross-Device Local Connection for Access Control](https://help.verkada.com/access-control/configuration-and-setup/cross-device-local-connections-for-access-control).
{% endhint %}

***

## Release a lockdown from Command

{% stepper %}
{% step %}

#### Log in to Command.

{% endstep %}

{% step %}

#### Click **Release Lockdown** on the red banner at the top of the page.

{% endstep %}

{% step %}

#### Click **Confirm**.

{% endstep %}
{% endstepper %}

{% hint style="warning" %}
Lockdowns can also be released remotely from the [Verkada Pass App](https://help.verkada.com/access-control/configuration-and-setup/verkada-pass-app).
{% endhint %}
